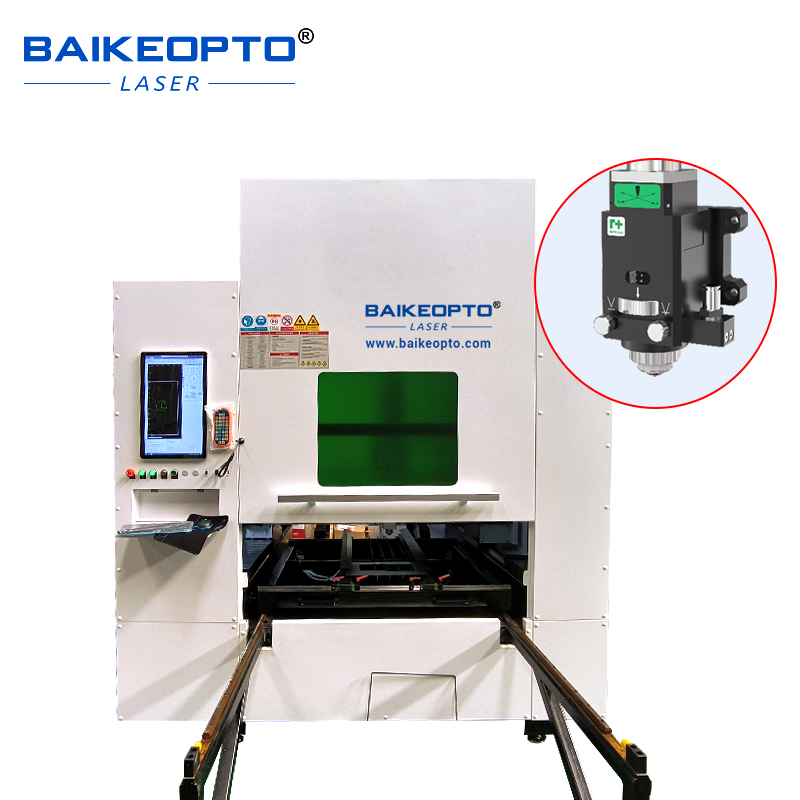

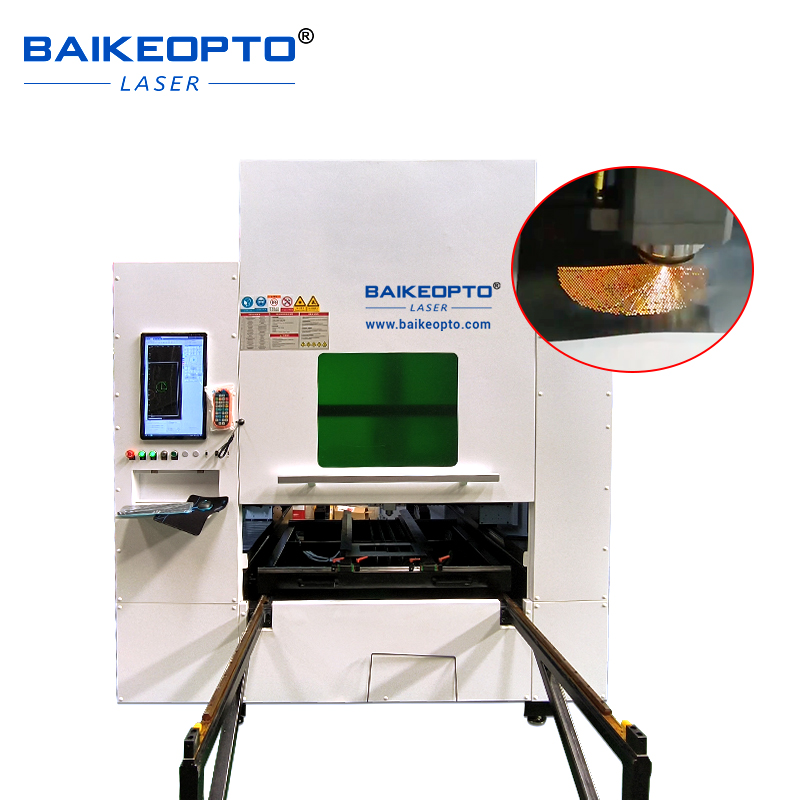

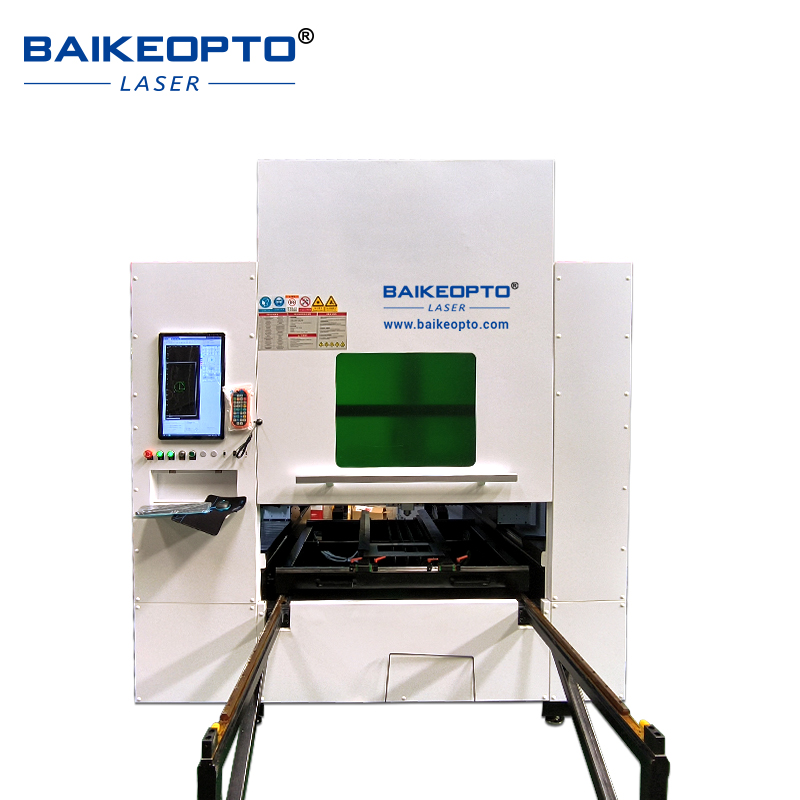

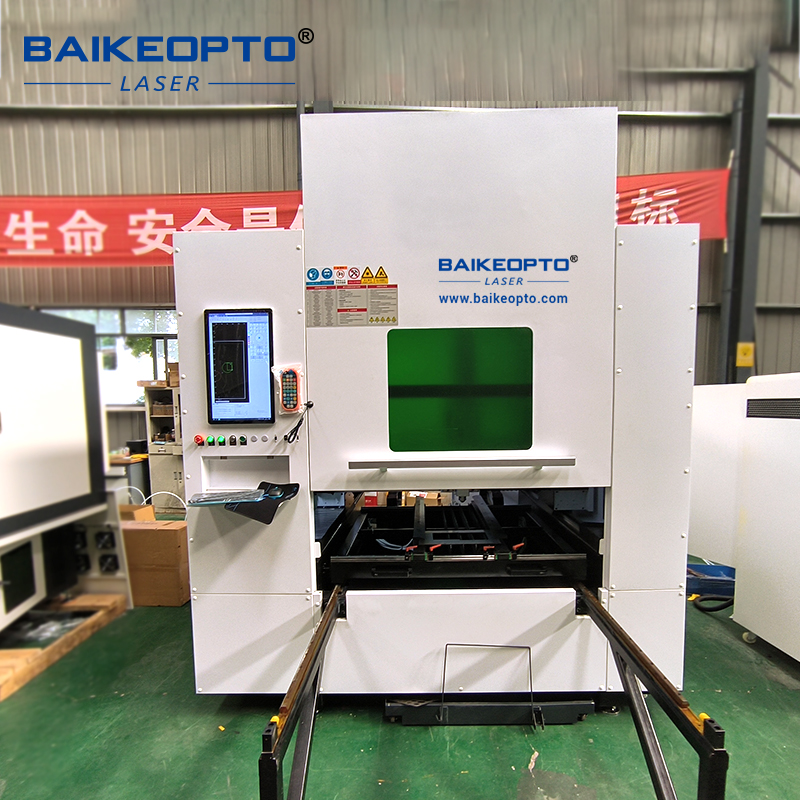

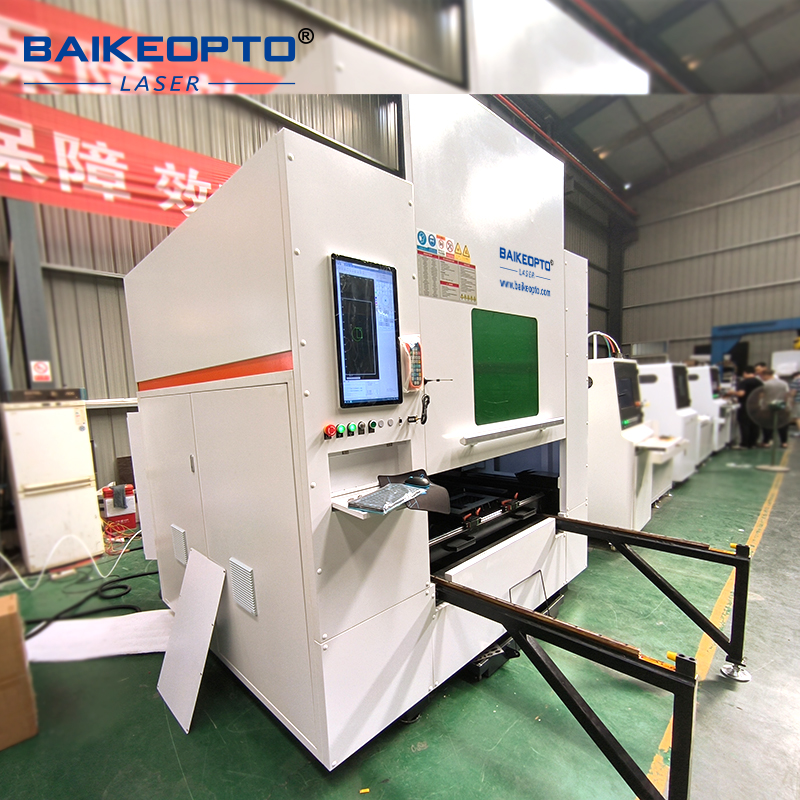

BK-8080L-150XQ 150W Multi-Functional Precision QCW Laser Cutting Machine 800*800mm Work Table for Metal/Stainless Steel/Copper Cnc Laser Cutting Machine
BK-8080L-150XQ 150W Multi-Functional Precision QCW Laser Cutting Machine 800*800mm Work Table for Metal/Stainless Steel/Copper Cnc Laser Cutting Machine
Model：BK-8080L-150XQ
Laser Power：150W/300W/450W/600W
Supply Voltage: AC 220V/380V±10%、50/60Hz
$31,500.00 USD
$33,500.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Power
BK-8080L-150XQ，150W
Quantity
Description
|

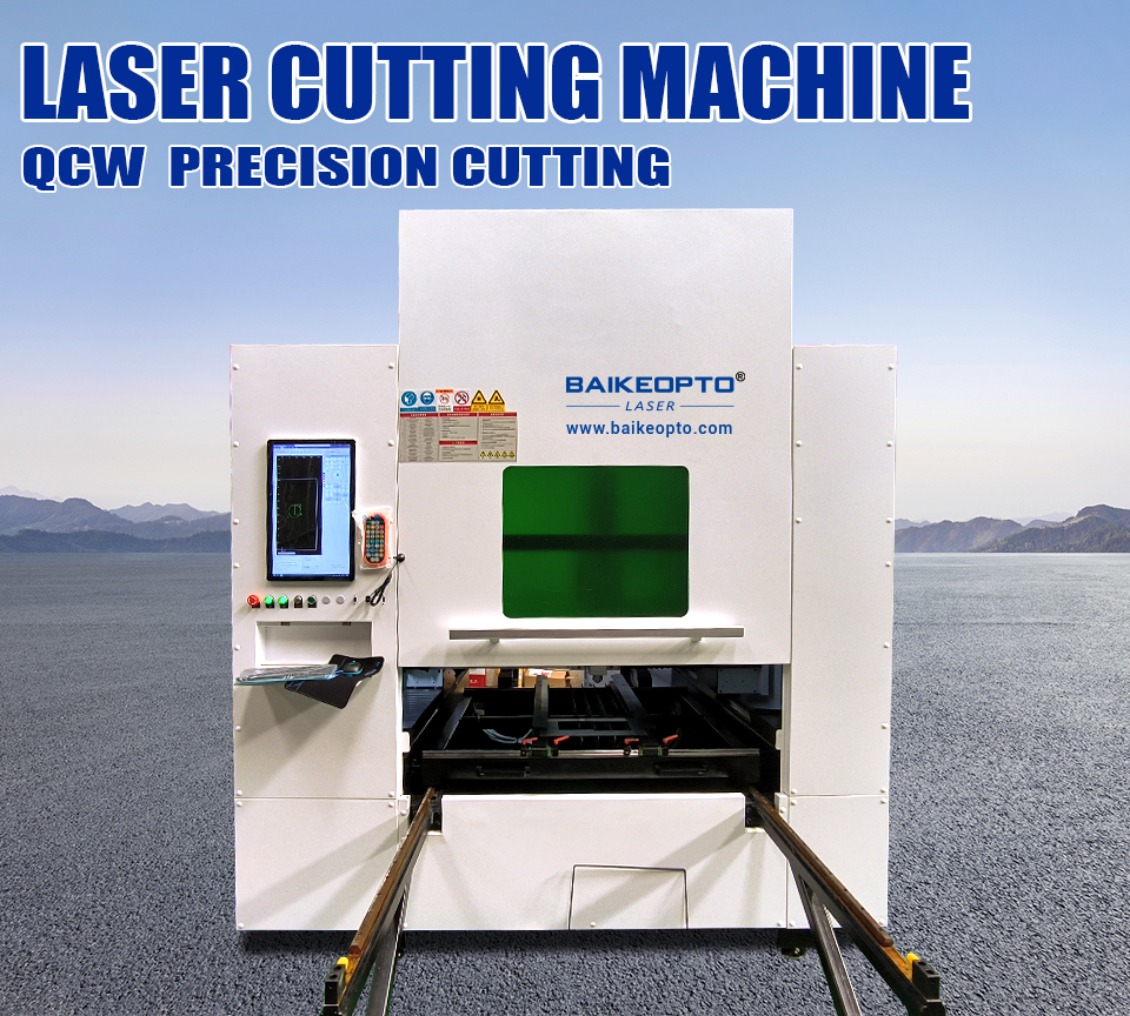

PRECISION CUTTING MACHINE
|
|
Equipped with an independently developed precision cutting control system, it features continuous and rapid curve cutting functions as well as the shortest processing path optimization function. lt is not affected by the shape of the workpiece and can process any shape. The cutting seam is smooth and beautiful. lt can perform precise cutting of any shape on small workpieces, making your production process simplerand more efficient. The high-precision fiber laser cutting machine features high single-machine processing efficiency, no dust at all, no stress, no burrs, and smooth and neat cutting edges. One-time cutting and forming, no need to develop molds or undergo secondary grinding processing. The process is simple, reducing labor and time input costs. Compared with traditional stamping forming, the processing cost ota single workpiece is lower, and the efficiency is increased by more than twice. The subsequent maintenance cost is only 1/3 to 1/4 of that of a CNC punching machine with the same efficiency.
|
| It mainly targets high-precision micro-hole cutting of various metal thin plates under 5mm, and is particularly suitable for precise cutting of metal materials such as stainless steel, aluminized zinc plates, silicon steel, alloy steel, and copper, as well as non-metallic brittle materials such as sapphire, ceramics, and wafers |
|
Parameters of BK-8080L-150XQ
|
|
|
Model
|
BK-8080L-150XQ
|
|
Name
|
Precision Laser Cutting machine
|
|
Laser Source
|
150W
|
|
X. Y-axis positioning accuracy
|
±0.003mm/m
|
|
repeatability
|
±0.005mm
|
|
Processing format
|
800mm*800mm
|
|
Voltage
|
Three phase 380V/50Hz/50A
|

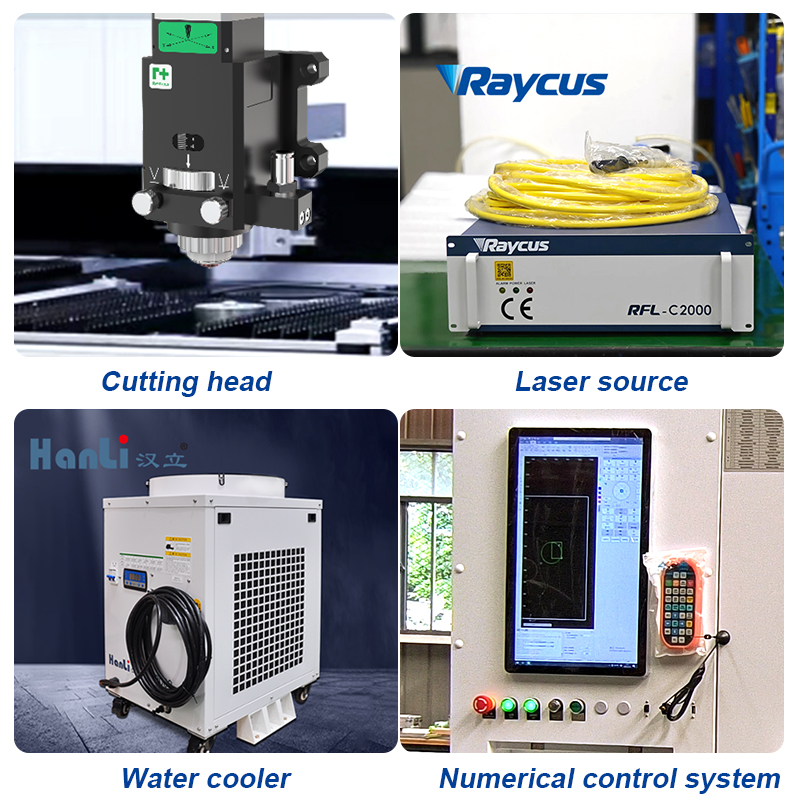

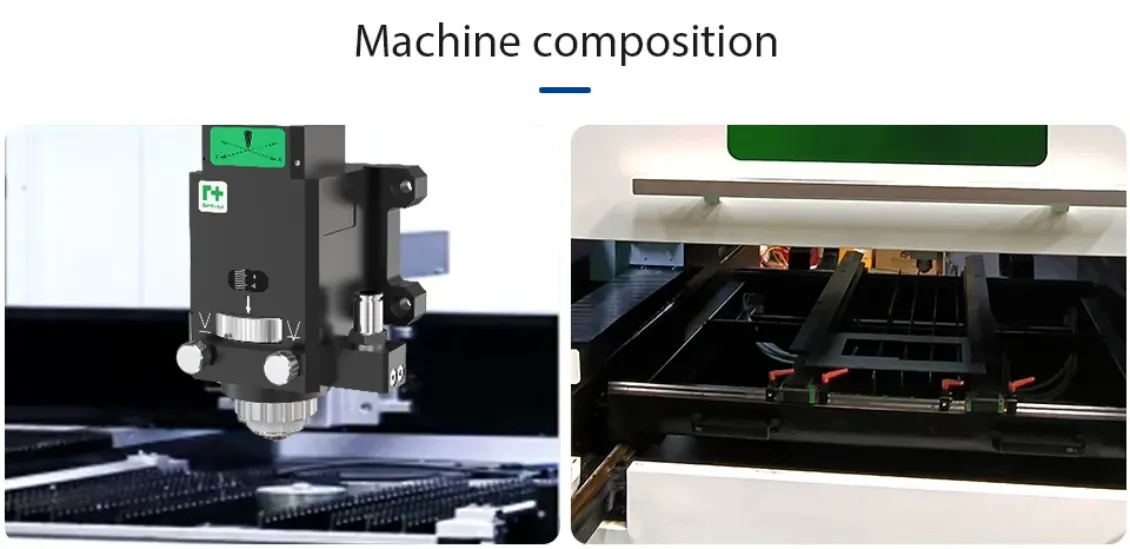

Cutting head1. It adopts a uniquely designed blowing method to reduce the contamination of the internal lenses during cutting
2.The optical focusing lens group is made of imported materials, ensuring along service life of the lenses
3. The focusing part of the cutting head is drilled with a hexagonal wrench, and the interior adopts a professional focusing design, ensuring a stable optical focus.
|
Machine tool1.The moving parts adopt high-precision lead screws and linear guides, as well as servo motors.Smooth transmission, high speed and high precision.
2.The machine tool as a whole adopts a mobile platform structure. lt has good rigidity, high precision, does not deform during use and has good stability.
|

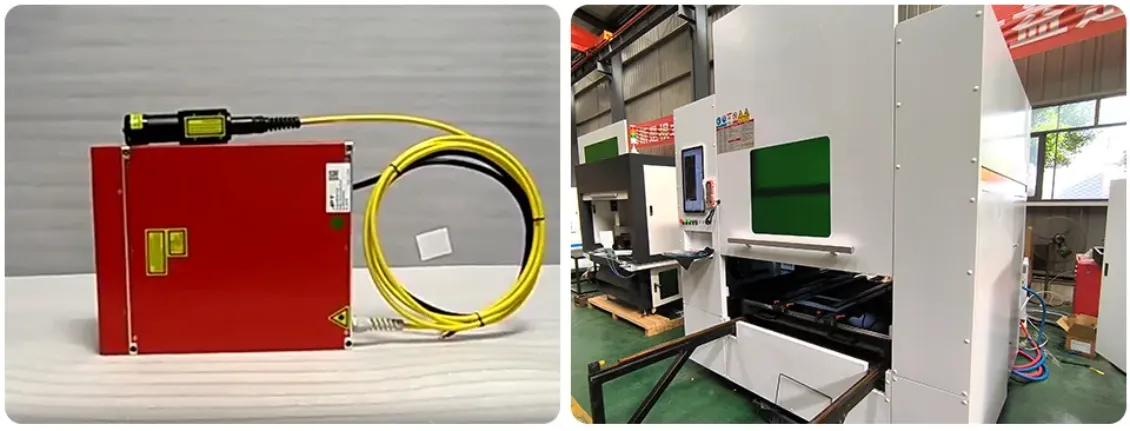

Laser sourceIt adopts domestic first-line brand fiber lasers with strong anti-reflection performance. lt has strong reliability and a long service life,effectively ensuring long-term stable operation.
|

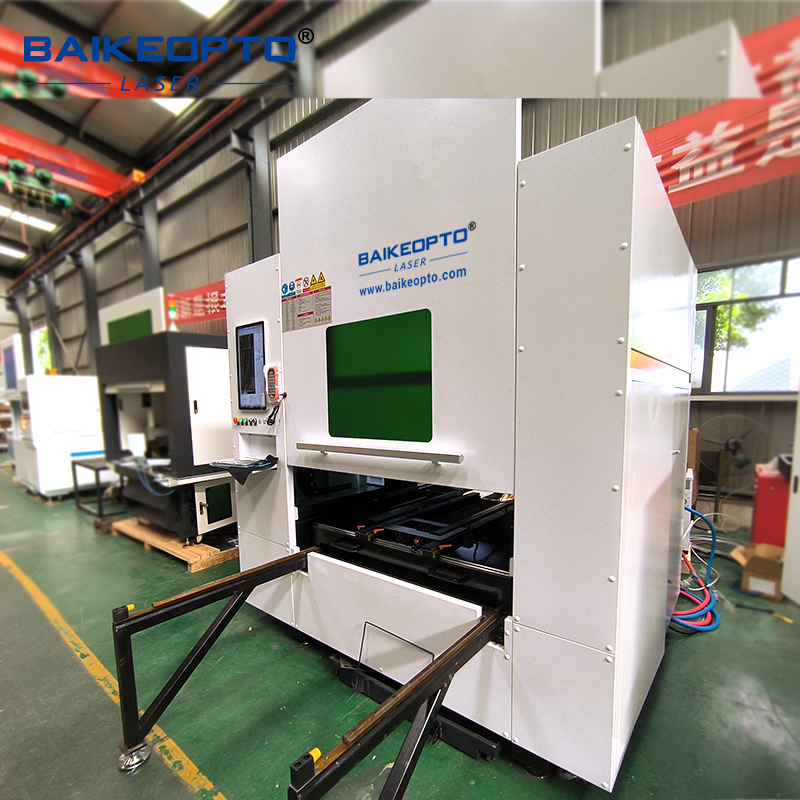

Enclosed designThe fully enclosed and closed anti-laser radiation design reduces dust pollution and minimizes the impact on operators. The overall appearance is grand and upscale compact and reasonable,and convenient for placement and use.
|

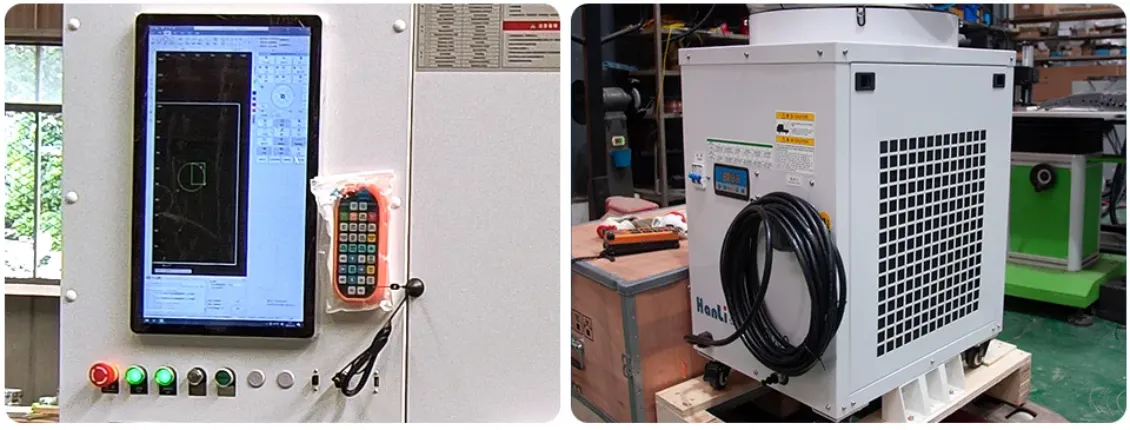

Numerical control system1 .Supports input of multiple file formats such as DXF, DWG, and lGES, batch import of parts,and import of CSV part lists.
2. The cutting path is automatically optimized with an independent process database, and it also supports common edge cutting
3. Professional CA interface, fully meeting the display requirements of various processes;
|
Water ChillerProviding cooling water cooling for lasers, providing constant temperature water cooling for laser cutting heads, efficient and environmentally friendly, with-flow and over temperature alarms, and linkage signal protection for lasers.
|
| Wuhan Baike Intelligent Technology Co., Ltd., a wholly-owned subsidiary of Wuhan Baike Times Laser Technology Co., Ltd., was founded in 2008 as a professional supplier of laser machine.Wuhan Baike lntelligent Technology Co., Ltd., located in Optical Valley of china, has gathered the best R&Dproduction and marketing teams in the domestic laser industry. More than 100 kinds of industrial laserproducts,including pneumatic marking machine, laser marking machine, laser welding machine, laser cuttingmachine, developed by the company's technical team, have been widely used in 3C electronics, semiconduc-tor, new energy (including photovoltaic), metal processing, automobile manufacturing, electric power, textilemachinery, fashion FMCG, medical devices, instruments and meters, food processing and other industries. Theproduct quality and service have been highly praised by customers internationally. We has achieved strategic cooperation with dozens of domestic top 500 manufacturing enterprises. We'vebeen dedicated to provide our customers with the highest quality, the best cost performance, the mostsuitable laser equipment. lfyou have any needs, please call/mail us directly. All you need to do is just tell uswhat you need, we'l provide the most professional services. |
|
1.What materials can be cut by the laser cutting machine? It's widely used in metal and non-metallic materials, such as stainless steel, carbon steel, aluminum alloy brass, titanium alloy, rubber, plastic, etc. 2.What are the main components of this machine? The main components are: laser source, water cooling system, control system, cutting head, cutting platform, etc.
3.How to choose the right power of laser cutting machine?
It depends on the material and thickness, for example, the power of 1000W-3000W is suitable for cutting stainless steel plate with 0-8mm. Please inform our personal consultant of your cutting needs and recommend the best solution for you.
4.What are the advantages of laser cutting compared to traditional processing?
High precision, fast efficiency( 3-5 times faster than the traditional way), high flexibility, high cutting quality.
5.How about the shipment?
It is packed in a stable and hard wooden case, with shockproof treatment, suitable for land or sea transportation.
6.How to install after receiving the goods?
There are detailed product manuals, including detailed installation guides, and there are also engineers who can teach the installation online and remotely in real time.
7.How long is the warranty period?
It's one year. And don't be worry ,even after the warranty, there will be a special engineer to help.
8.Do you support customization or OEM/OED?
Yes, we can tailor the service to your needs
9.What other products do we have?
Fiber Laser Cutting Machine, Laser Cleaning Machine, Laser Welding Machine, Laser Marking Machine and Wall Printing Machine.
|
