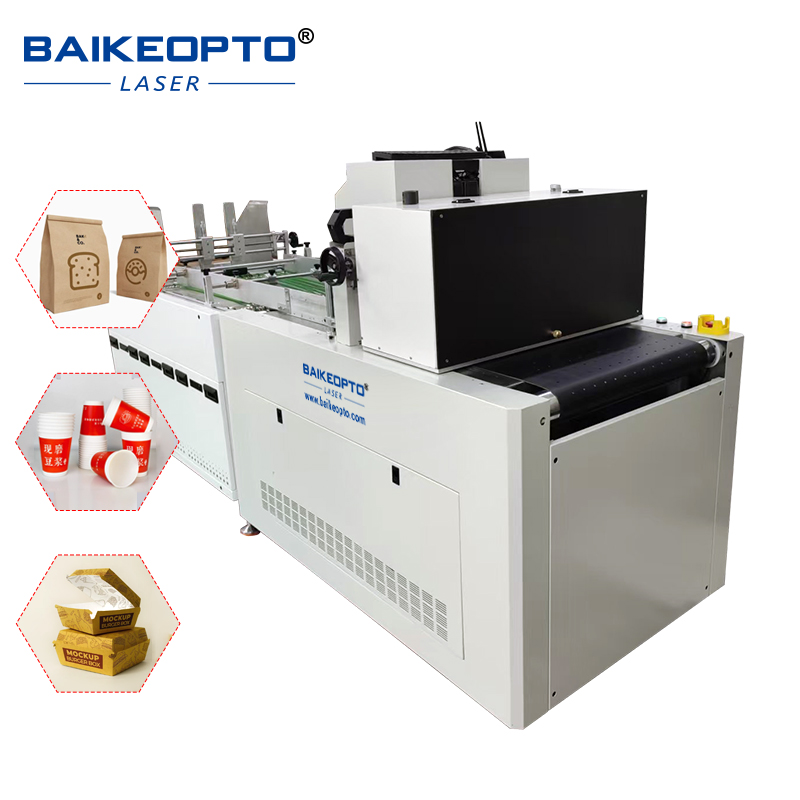

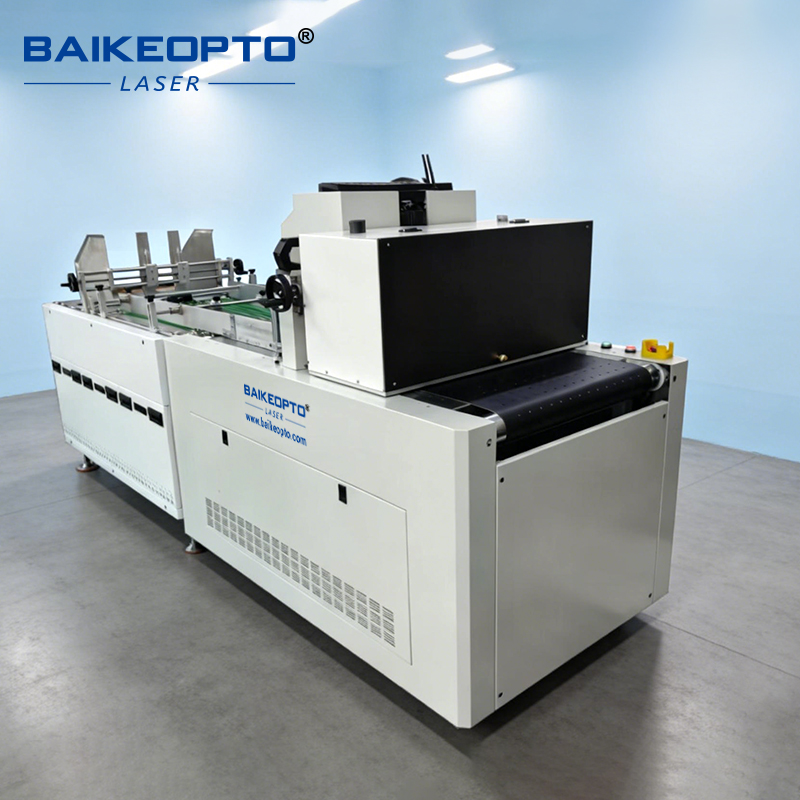

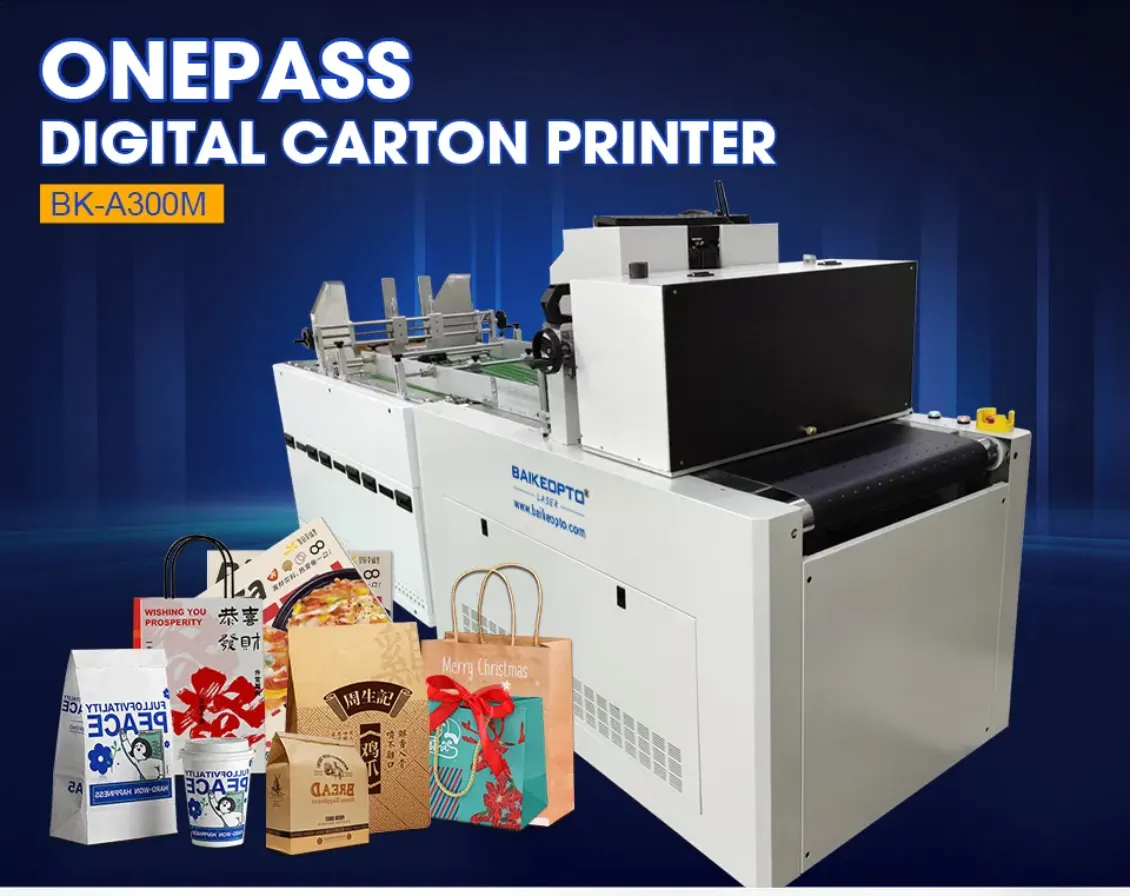

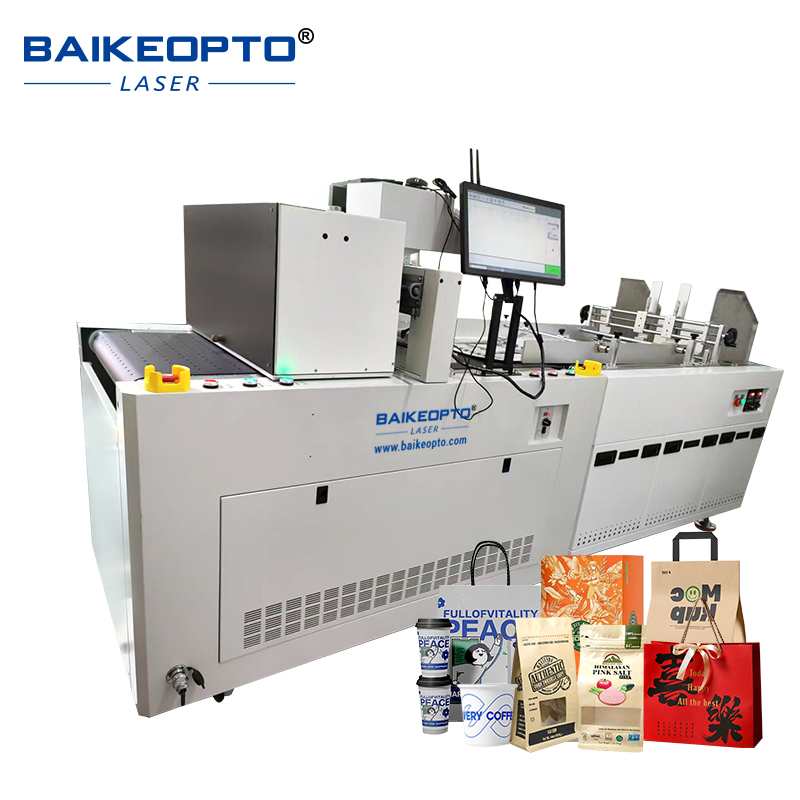

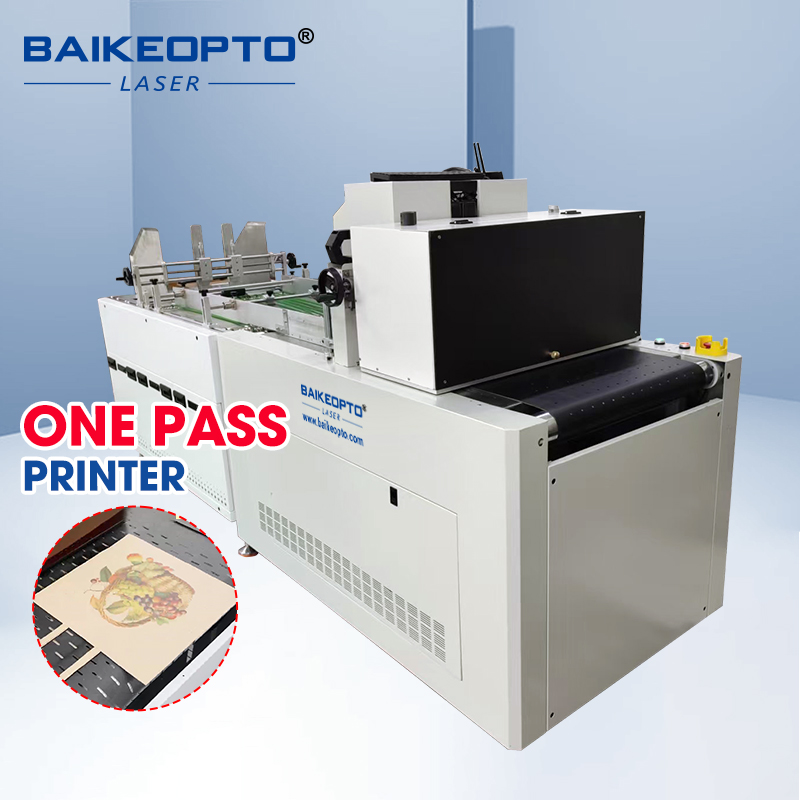

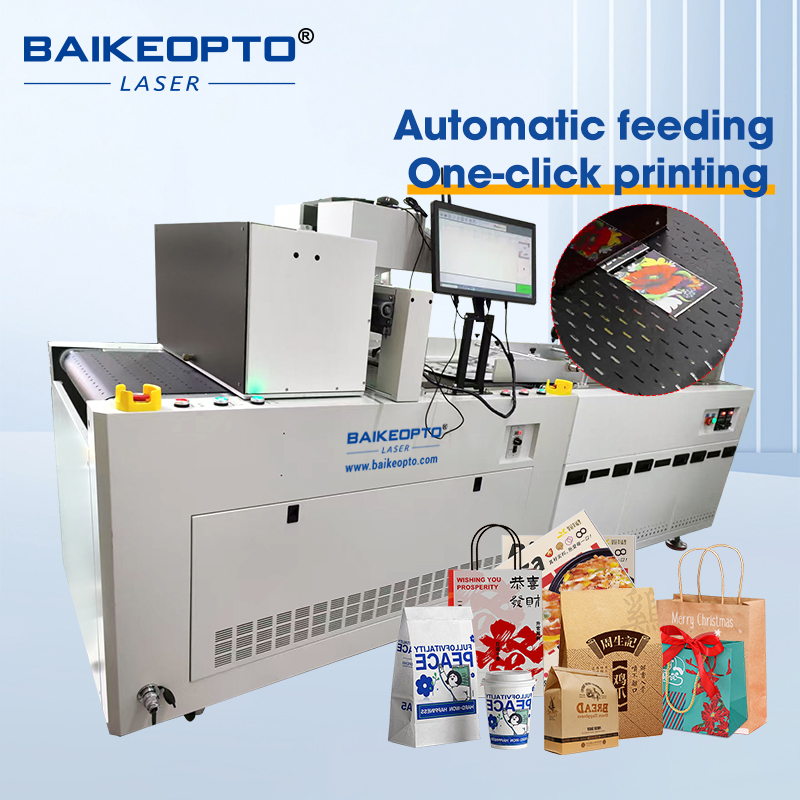

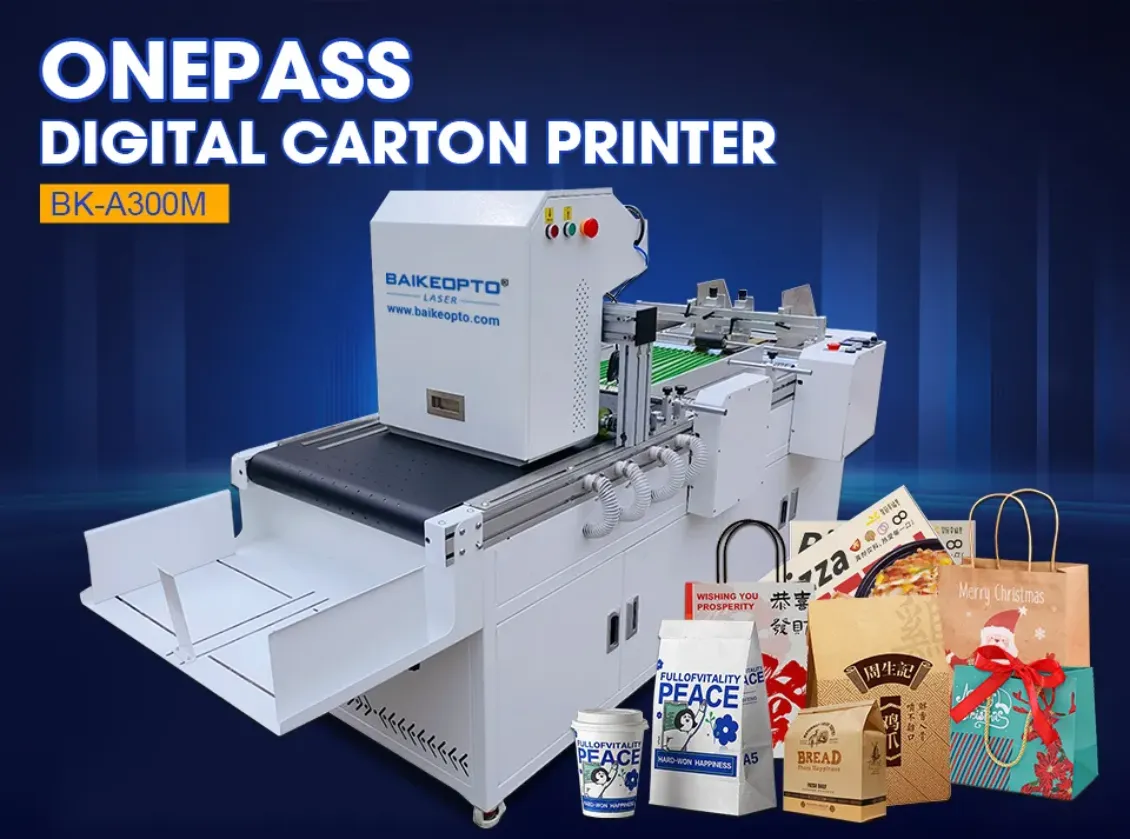

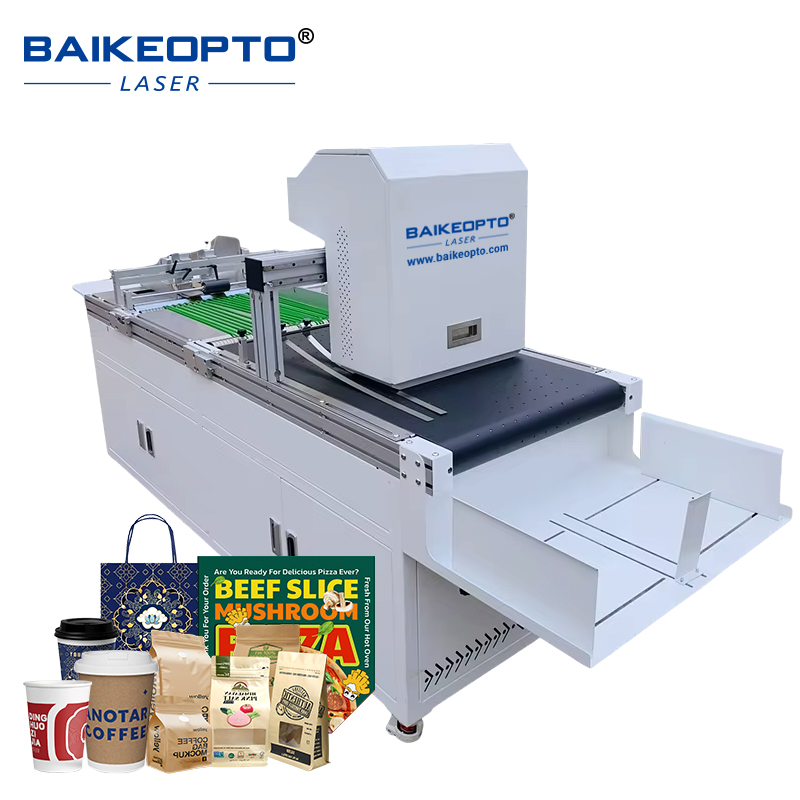

BK-A300M One Pass Carton Box Inkjet Printer High-Speed Single-Pass Technology for Flawless Continuous Printing
| The A3 One Pass Carton Package Corrugated Printer can print on the surface of various absorbent materials such as carton, writing paper, offset paper, craft paper, corrugated paper, envelop, paper bag, paper cup etc. This printer is the optimal solution for E-commerce brands, print service providers, small/mid-sized packaging converters and sample & prototype development studios. |
|

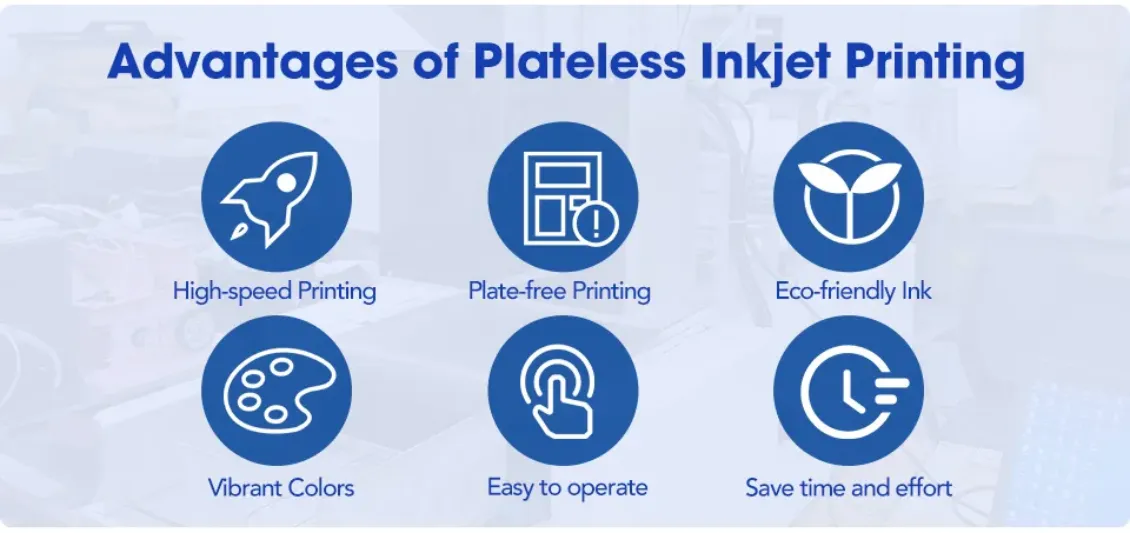

1.High speed printing
2. Plate-free Printing
3. Eco-friendly ink
4.Vibrant Colors
5. Easy to operate
6. Save time and effort
|
|
High definition Printing Color truth
Imported nozzle, on-demand inkjet intelligent feathering. curve printing delicate and soft color, real details
|
|

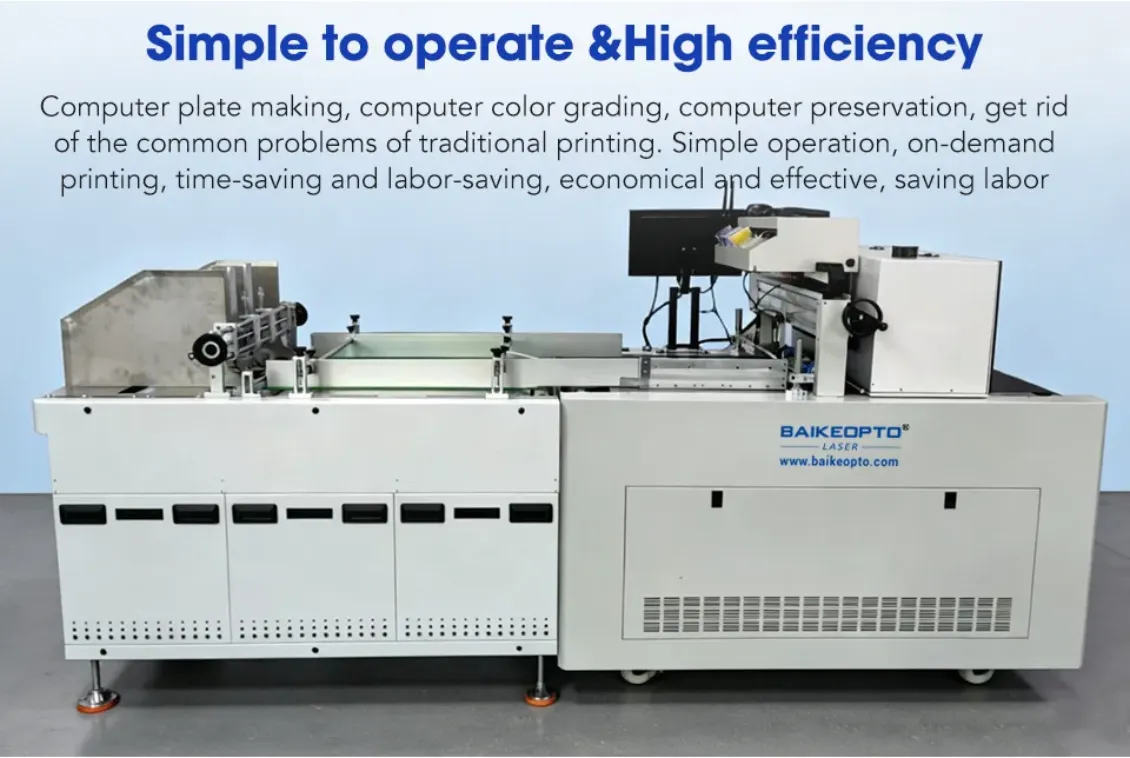

Simple to operate & high efficiency

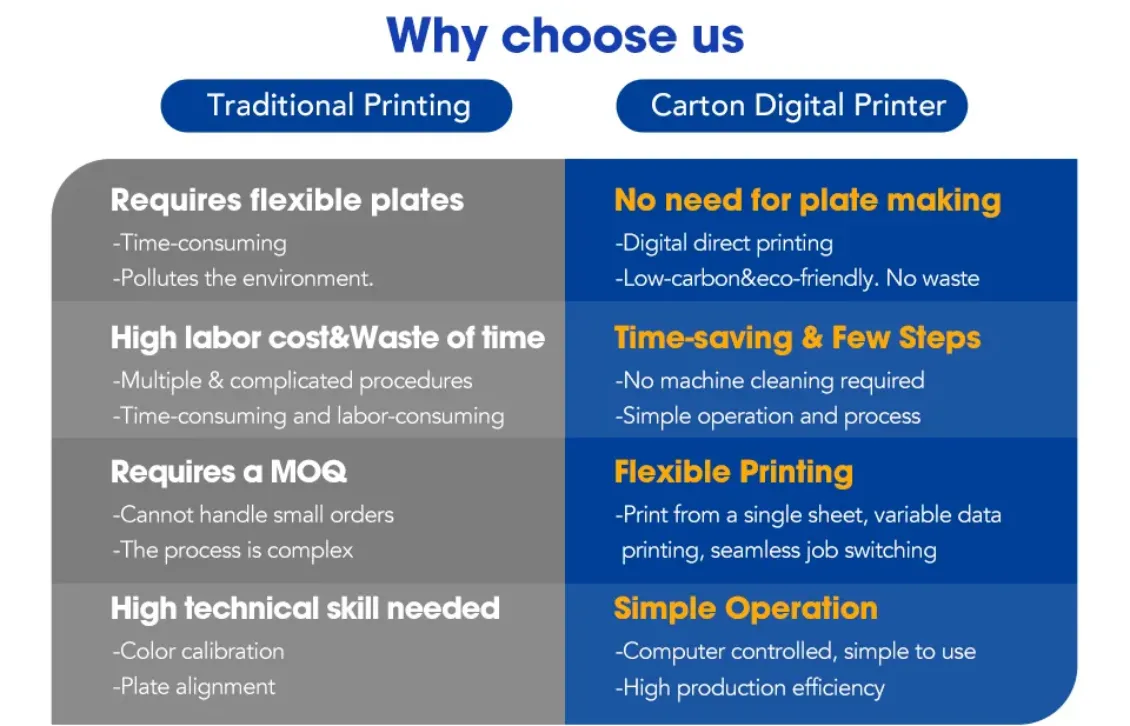

Computer plate making, computer color grading, computer preservation, get rid of the common problems of traditional printing. Simple operation, on-demand printing, time-saving and labor-saving, economical and effective, saving labor
|
|

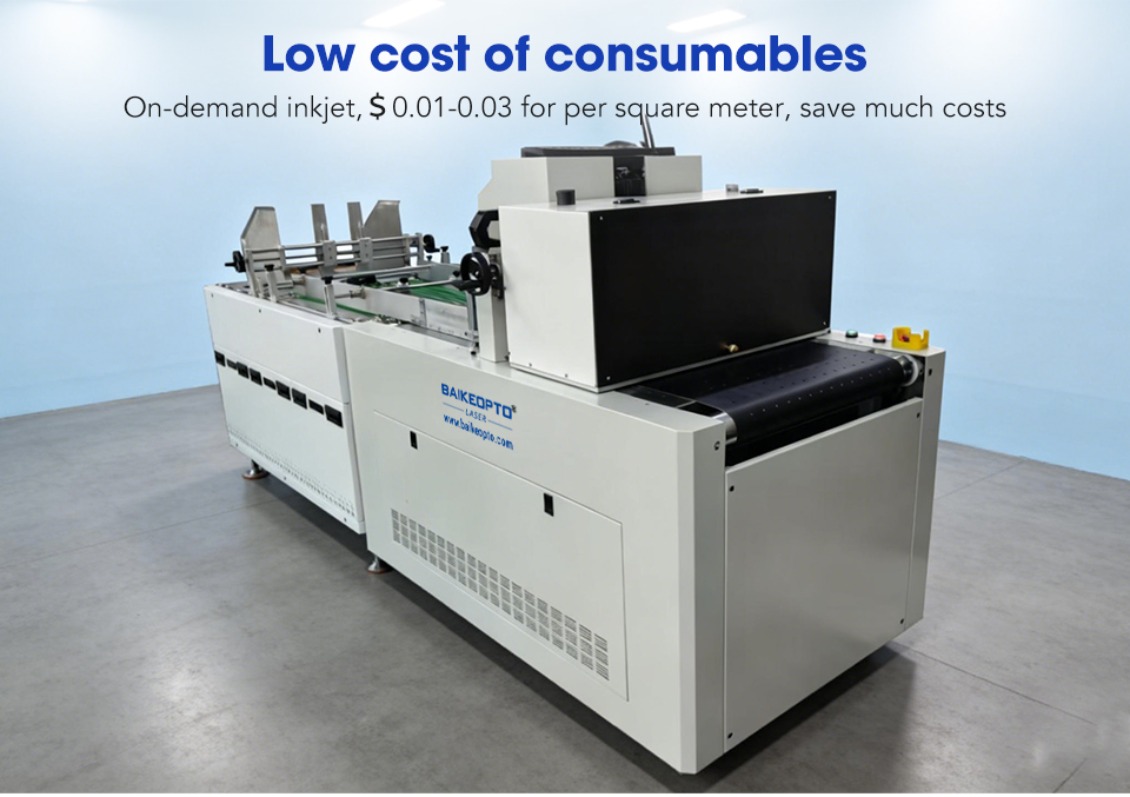

Low cost of consumables
On-demand inkjet, $0.01-0.03 for per square meter, save much costs
|
|
No.
|
Configurations
|
Details
|
|
1
|
Nozzle model
|
Industrial grade nozzle
|
|
2
|
Number of nozzles
|
HP A3 Nozzle
|
|
3
|
Effective screen printing width
|
29.7cm
|
|
4
|
Print wide format
|
600mm(Customization available)
|
|
5
|
Material feeding method
|
Two-way conveyor belt for material handling
|
|
6
|
Ink color
|
Black,blue,red,yellow
|
|
7
|
Printing accuracy
|
1200*(300/600/1200)dpi
|
|
8
|
Print mode
|
One Pass Print
|
|
9
|
inkjet technology
|
Thermal foam type
|
|
10
|
inkjet type
|
Environmentally friendly water-based ink
|
|
11
|
Ink loading method
|
Cartridge refill
|
|
12
|
Print height
|
10cm(Customization available)
|
|
13
|
Ink supply system
|
Pin type
|
|
14
|
printing speed
|
10~40m/minute
|
|
15
|
Environmental requirements
|
Room temperature:0-35 ℃
|
|
16
|
Consumables cost
|
$ 0.01-0.03/sqm
|
|
17
|
Body structure
|
Steel rack
|
|
18
|
Operation mode
|
computer controlled
|
|
19
|
Power requirements
|
220VAC 50Hz 1000W(max)
|
 |
|

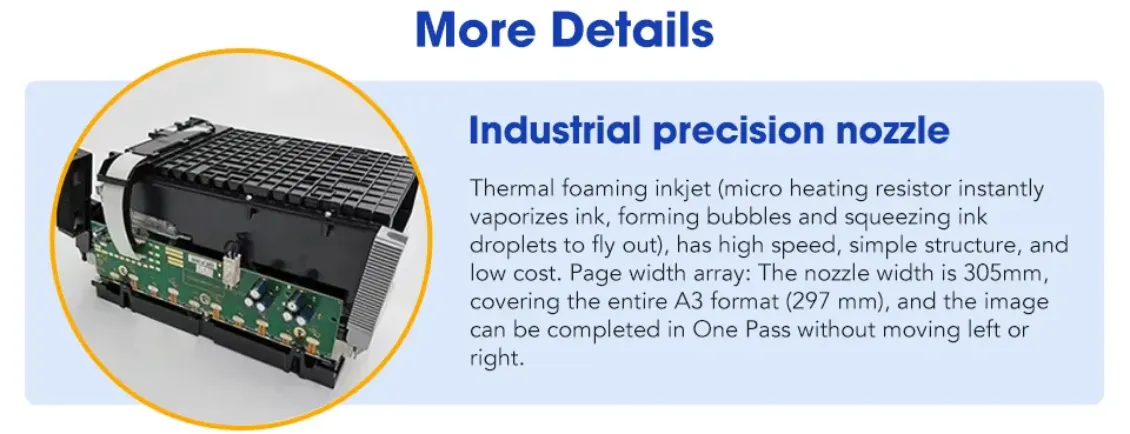

Industrial precision nozzle
Thermal foaming inkjet(micro heating resistor instantly vaporizes ink, forming bubbles and squeezing ink droplets to fly out) , has high speed, simple structure, and low cost. Page width array: the nozzle width is 305 mm, covering the entire A3 format(297 mm), and the image can be completed in one pass without moving left or right
|
 |
|

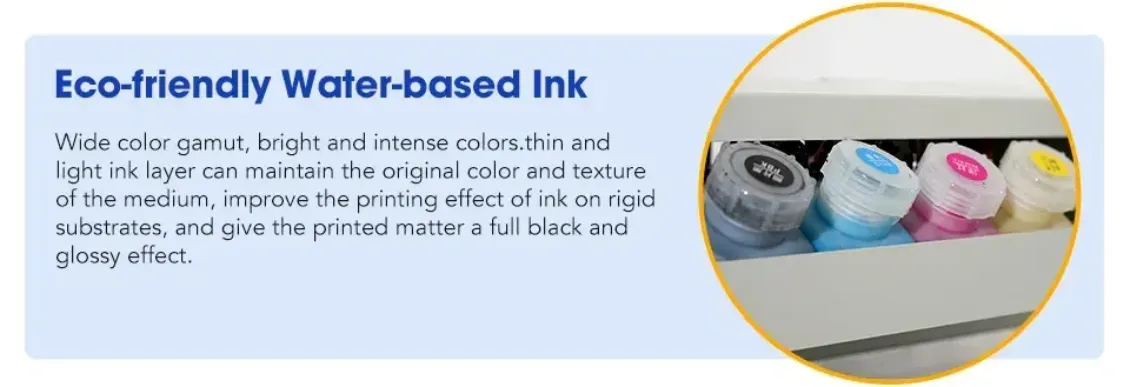

Eco-friendly Water-based ink
Wide color gamut, bright and intense colors, thin and light ink layer can maintain the original color and texture of the medium, improve the printing effect of ink on rigid substrates, and give the printed matter a full black and glossy effect.
|
 |
|
Color management
It supports multiple image formats such as JPG, PNG etc， With excellent color processing schemes and precise color matching, it shows true-to life reproduction of image colors. It solves 98% of color deviations.
|
 |
|

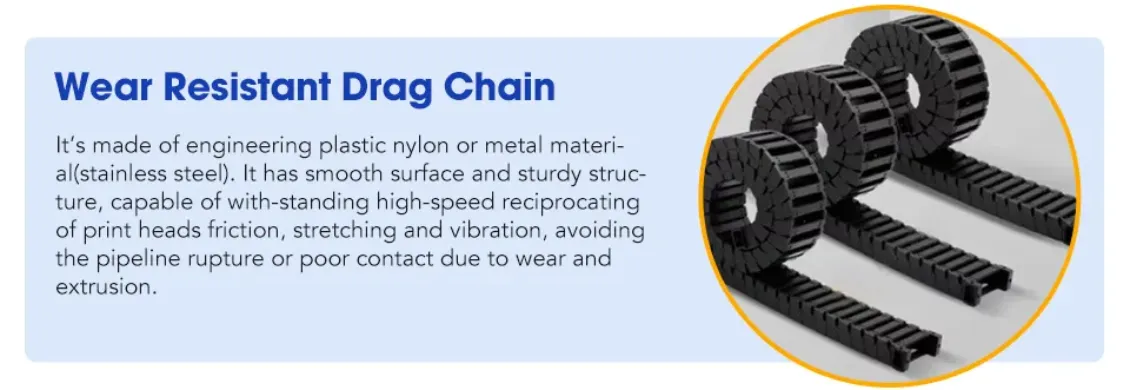

Wear Resistant Drag Chain
It's made of engineering plastic nylon or metal material(stainless steel). It has smooth surface and sturday structure, capable of with-standing high-speed reciprocating of print heads friction, stretching and vibration, avoiding the pipe line rupture or poor contact due to wear and extrusion.
|
 |
|

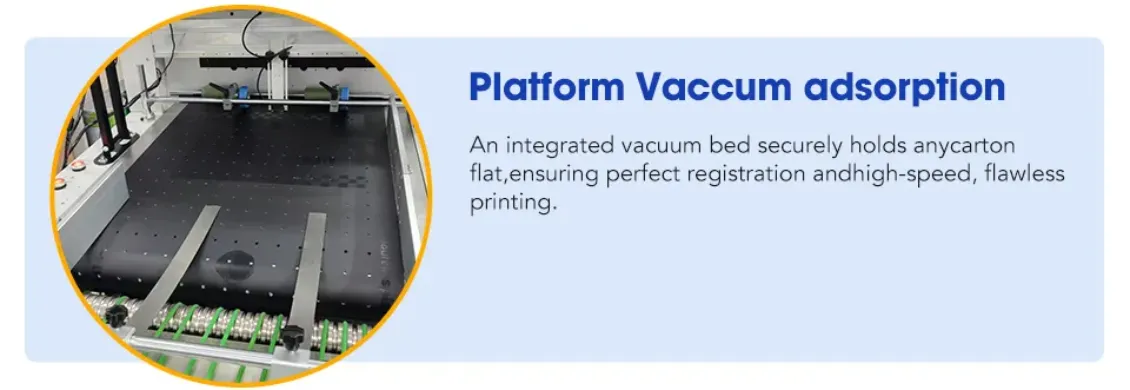

Plateform Vaccum Adsorption
An integrated vacuum bed securely holds any carton flat, ensuring perfect registration and high-speed , flawless printing
|
 |
|

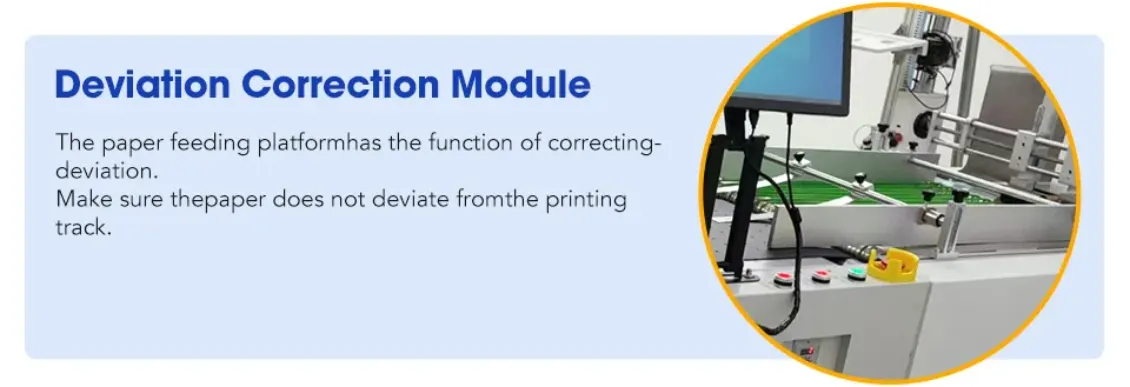

Deviation Correction Module
The paper feeding platform has the function of correcting-deviation
Make sure the paper does not deviate from the printing track
|
 |
|

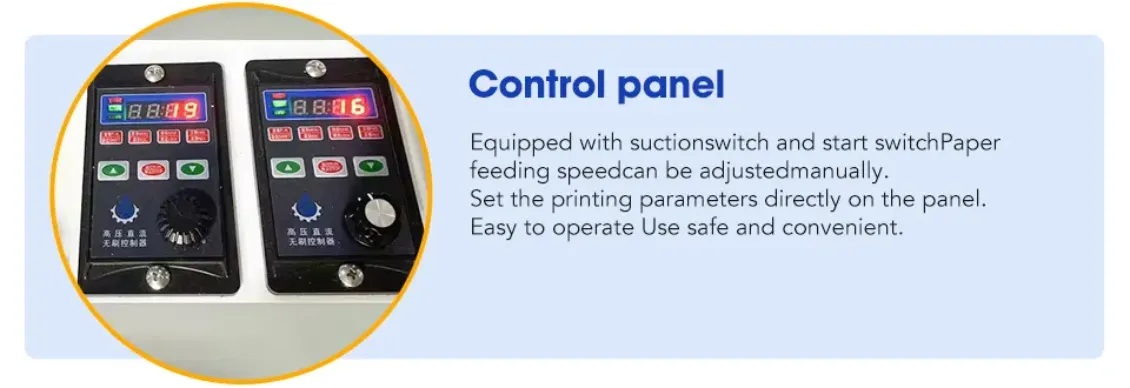

Control Panel
Equipped with suction switch and start switch, paper feeding speed can be adjusted manually.
Set the printing parameters directly on the panel
Easy to operate, use safe and convenient
|
