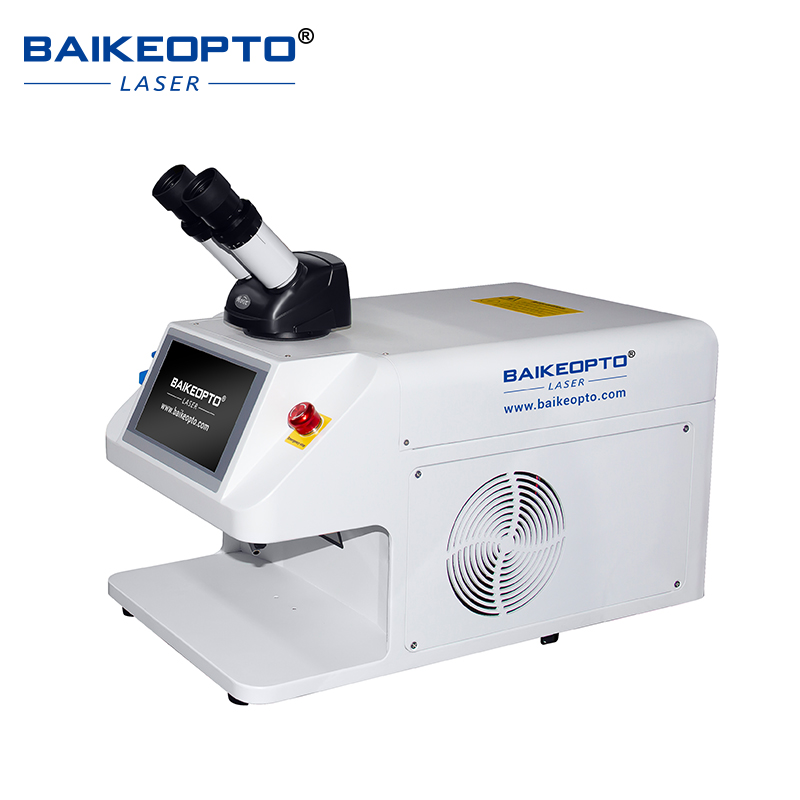

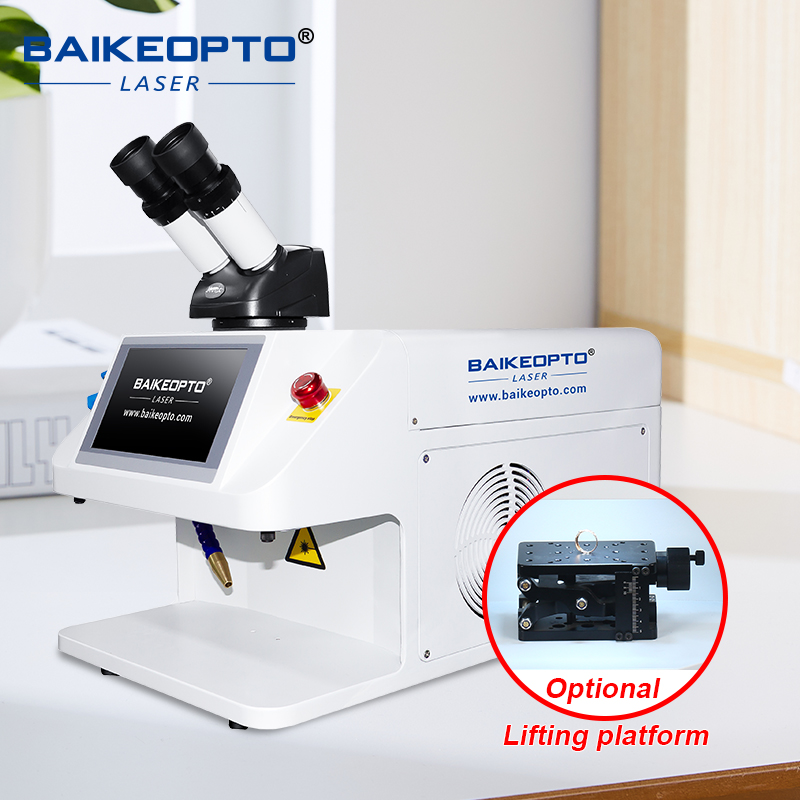

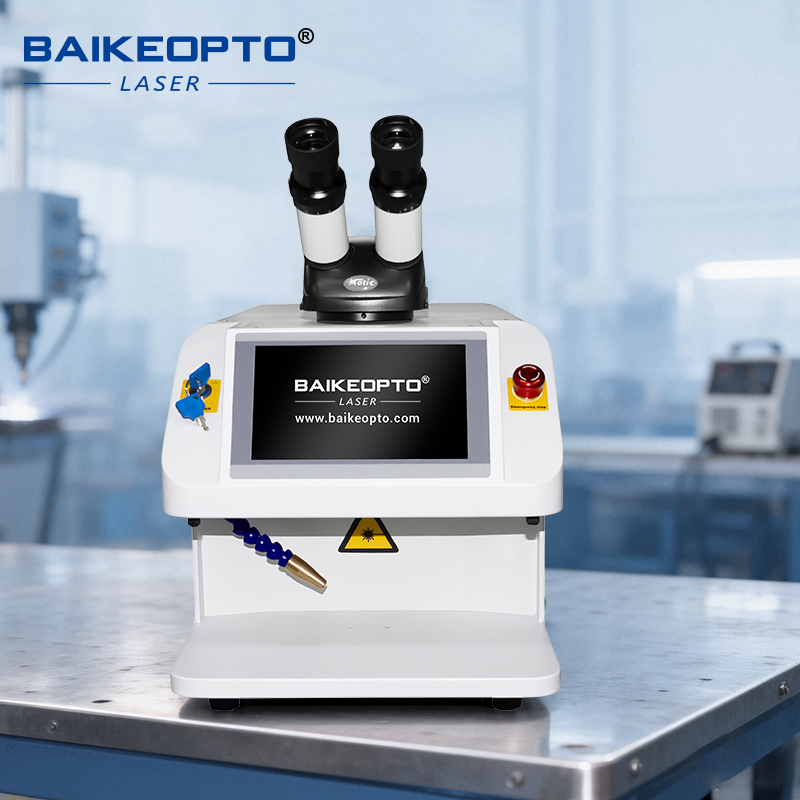

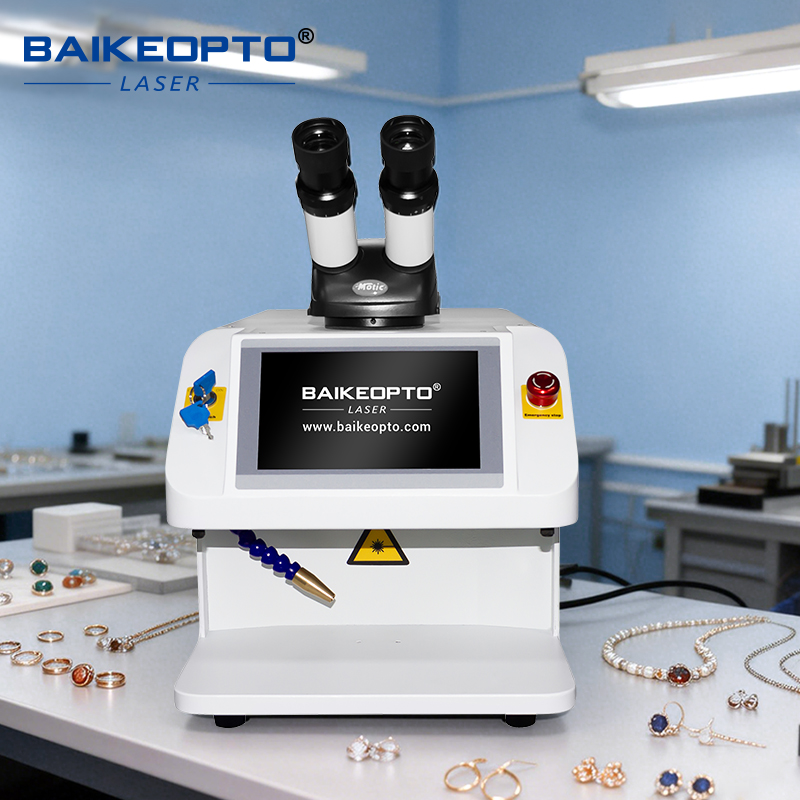

BK-JW80-X1 80W Portable YAG Laser Jewelry Welding Machine for Intricate Settings & Delicate Repairs
BK-JW80-X1 80W Portable YAG Laser Jewelry Welding Machine for Intricate Settings & Delicate Repairs
Model：80W YAG laser jewelry welding machine
Voltage：110V/220V
Laser Type：1064nm YAG Laser
Small size Low weight Easy to operate
Stable quality Fine details
$3,750.00 USD
$3,950.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Color
BK-JW80-X1 , 80W
Quantity
Description

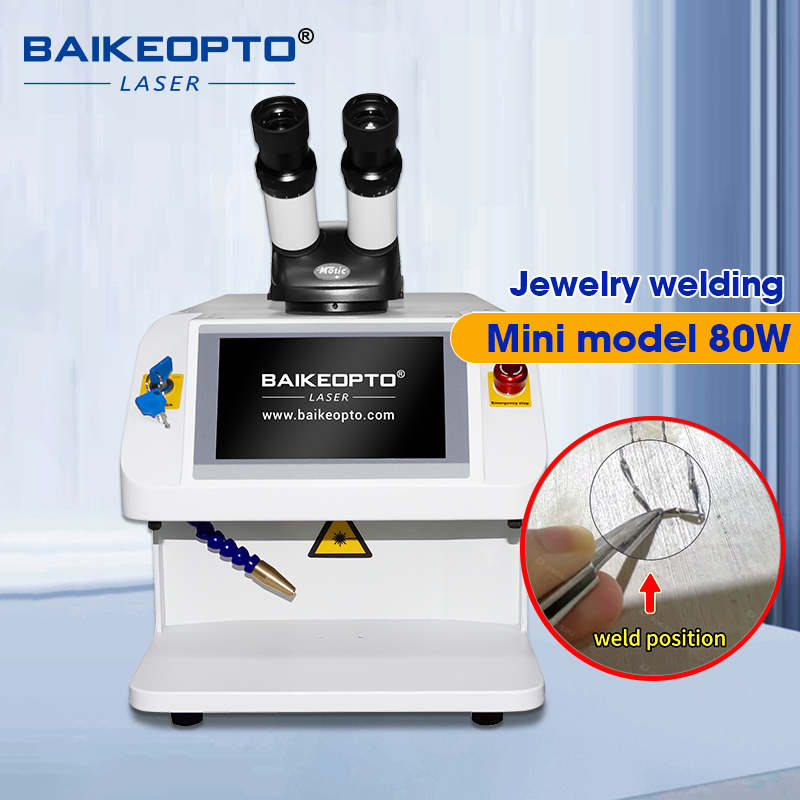

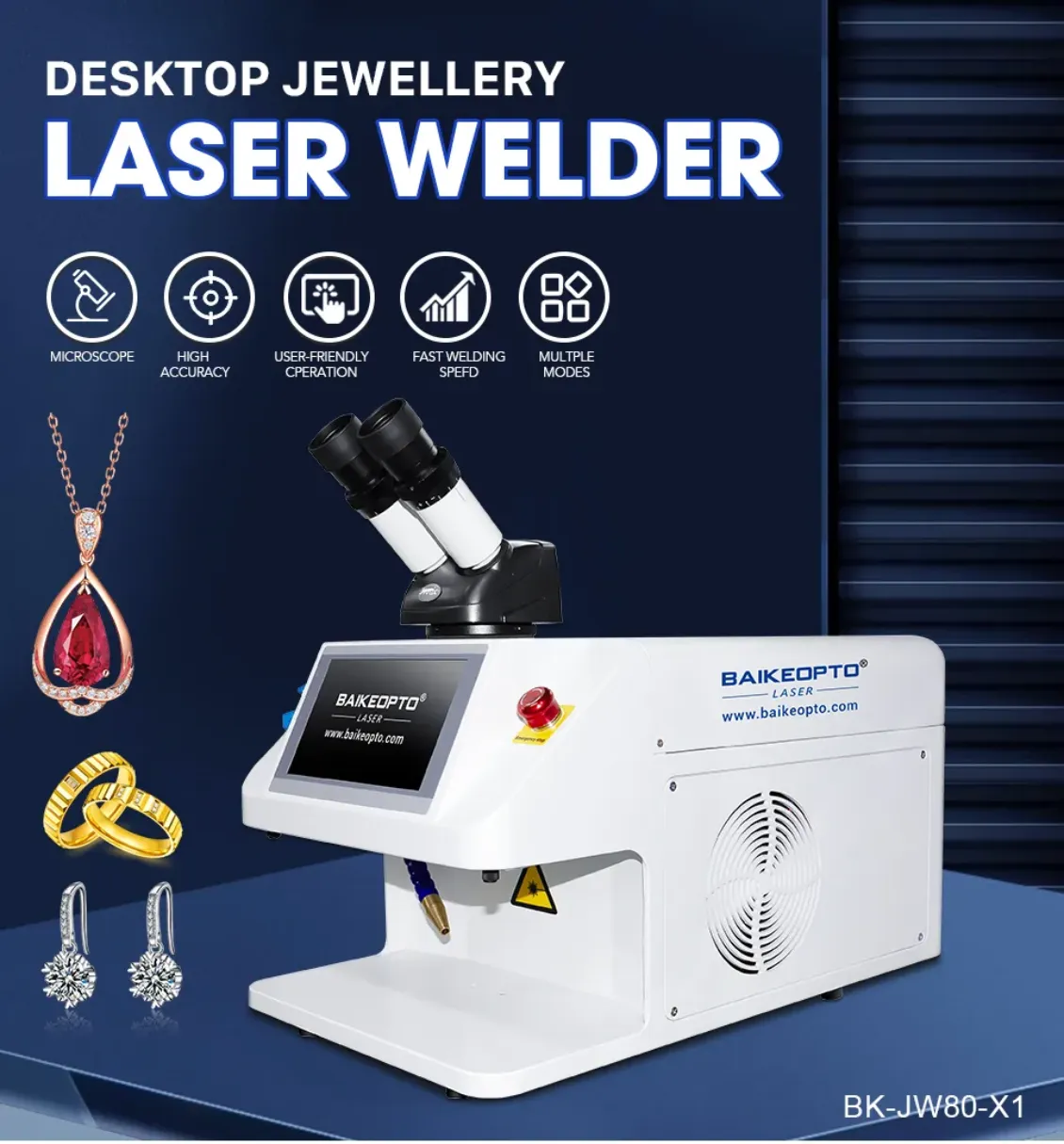

Mini Desktop Jewelry YAG Laser Welding Machine
| Jewelry laser welding machine adopts ergonomic design, suitable for professionaappearance design of jewelry laser welding industry, equipped with a dedicatedcross cursor microscope observation system, equipped with high-speed elec-tronic filter device, which can protect the eyes of the operator. The high-powerbeam expansion system can obtain more fine spots to meet the needs of finelaser spot welding; the whole machine is small in size, convenient to carry andtransport, simple to operate, good welding effect, stable and reliable equipment,and low failure rate. |
|
APPLICATION:
|
|
Product Name
|
Mini Desktop Laser Jewelry Welding Machine
|
|
Laser Source
|
Nd. YAG
|
|
Laser WavelengBK
|
1064nmnm
|
|
Maximum Laser Power
|
80W
|
|
Maximum Pulse Energy
|
80J
|
|
Pulse Width
|
0.1-15ms
|
|
Pulse Frequency
|
1-15Hz Adjustable
|
|
Spot Diameter
|
0.1-3mm
|
|
Observing System
|
Microscope and CCD both available
|
|
Settings Memory
|
31 combinations
|
|
Operation Interface
|
Touchscreen
|
|
Shield Gas supply
|
Single line Argon/Nitrogen
|
|
Language
|
Chinese/English/Japanese/Korean/Spanish Russian Arabian
|
|
Protection Alert
|
water flow and water temperature protection
|
|
Power Supply
|
AC220V, 50/60Hz
|
|
System Power Consumption
|
2KW
|
|
Ambient Environment
|
≤30℃, 5%-75% humidity
|
|
Dimensions/Weight
|
510*295*395mm/28KG(welderhost)
|
|

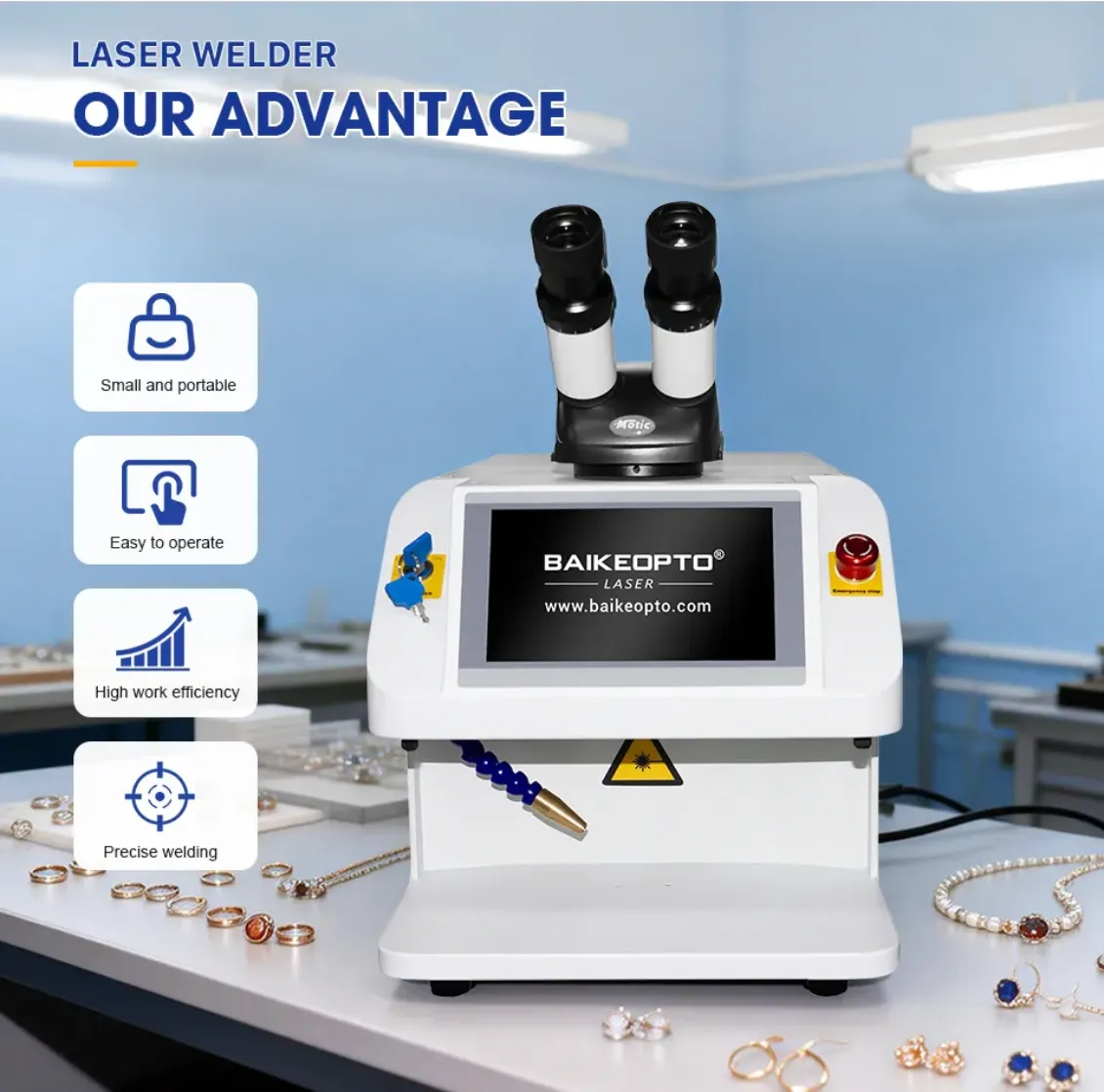

01 Compact Lightweight The whole fuselage is about 25kg, and the built-in water tank occupies an area of 0.06 square meters to better save space |
|
02 High Performance Precise Weld The welding quality is high , the gaps are beautiful, and the qualified rate of the finished product is effectively improved without secondary processing |
|
03 Easy to use CCD display integrated touch screen, friendly human-computer interaction interface. The pulse frequency spot can be easily adjusted, equipped with a foot switch to efficiently control the light output
|
|
04 Open platform with flexibility
3-side open design, easy operation of special-shaped workpieces, more space for artisans to adjust and observe clearly
|
|

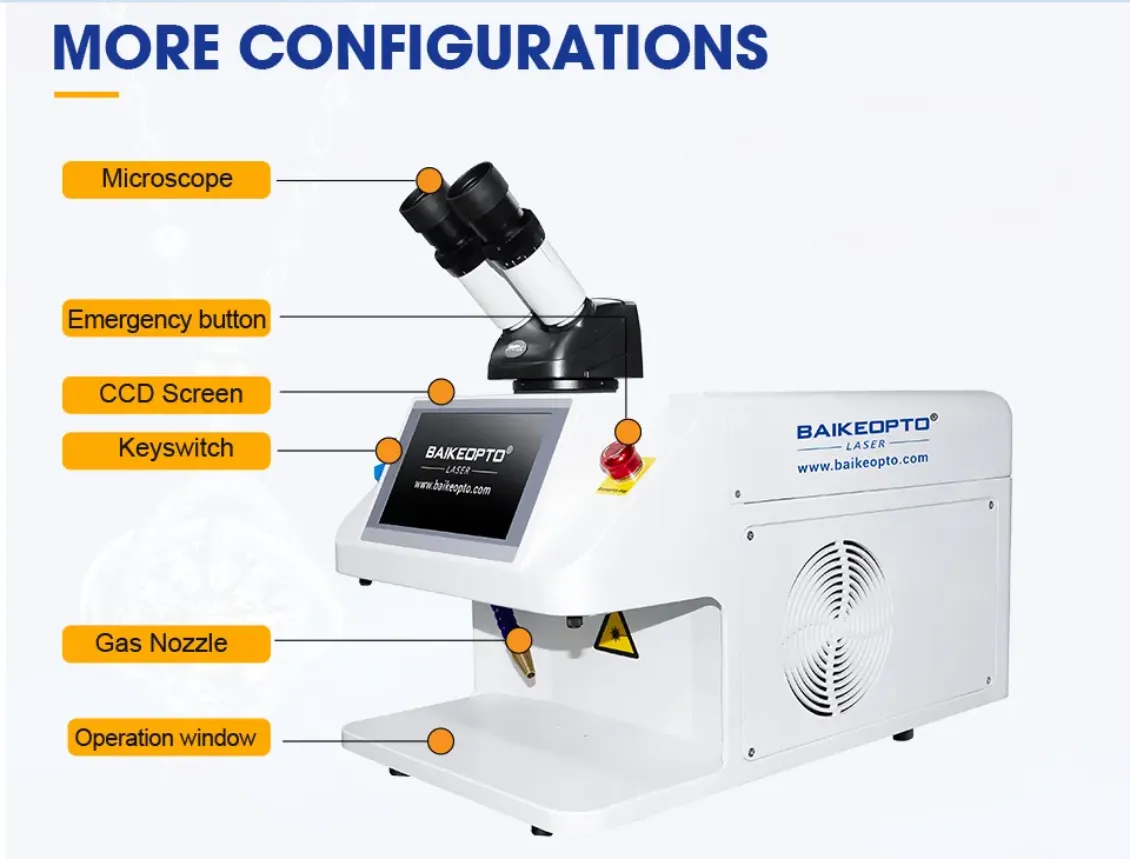

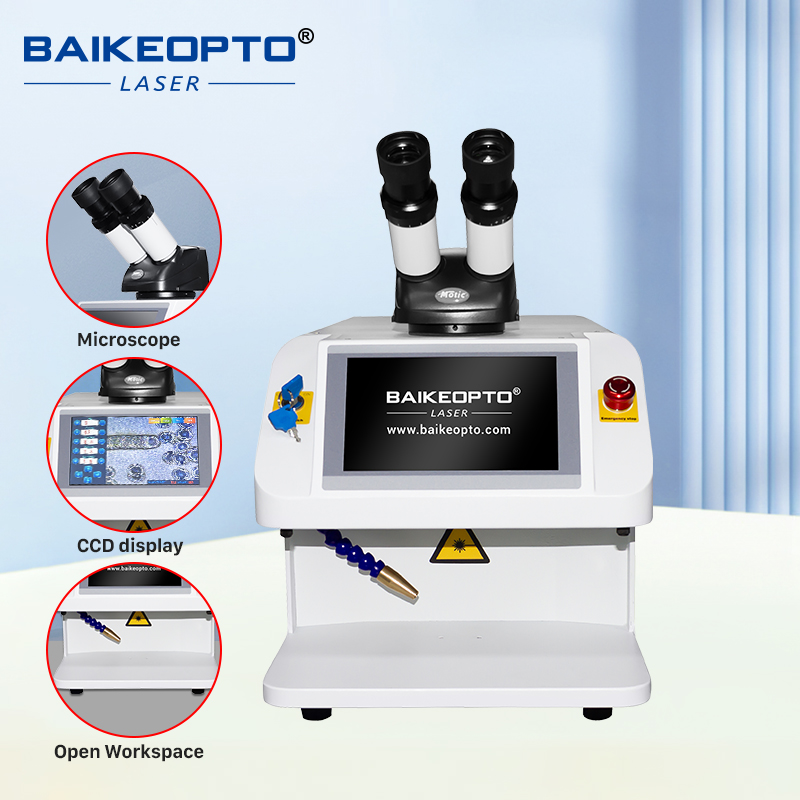

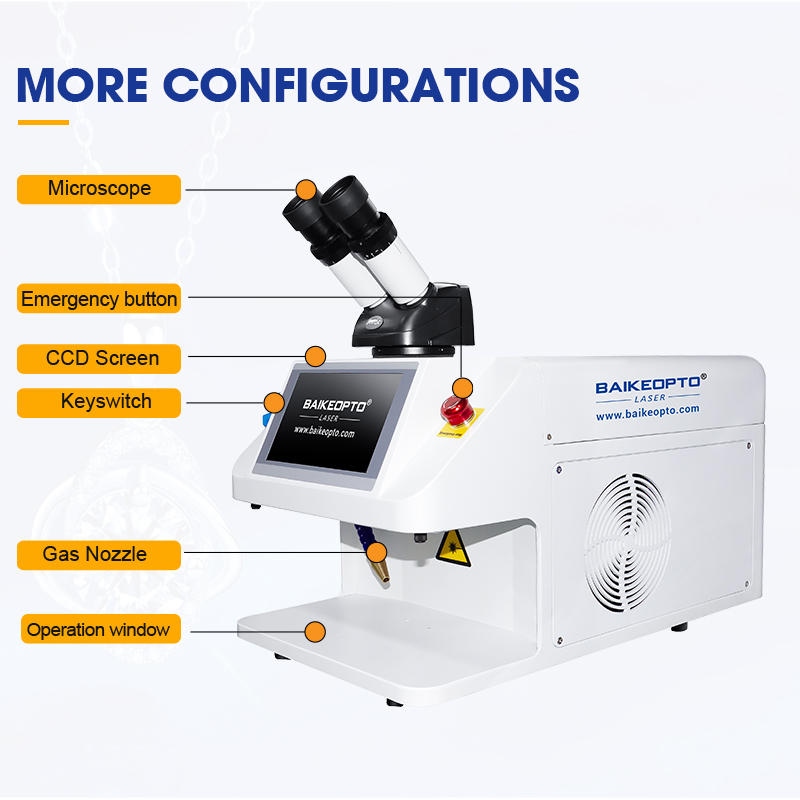

Optical Microscope
World-leading automatic light shielding system Up to 10 times magnification of details to meet subtle operations High-speed electronic filter protection device protects the opera-tor's eyes
|
Digital CCD System
Adopt digital control system, capacitive touch screen;Parameter interface is more sensitive and user-friendly than traditional screen.
|
LED Light
The adjustable light button fine-tunes brightness based on material type, reducing strong light interference and providing enhanced illumination as required.
|
|

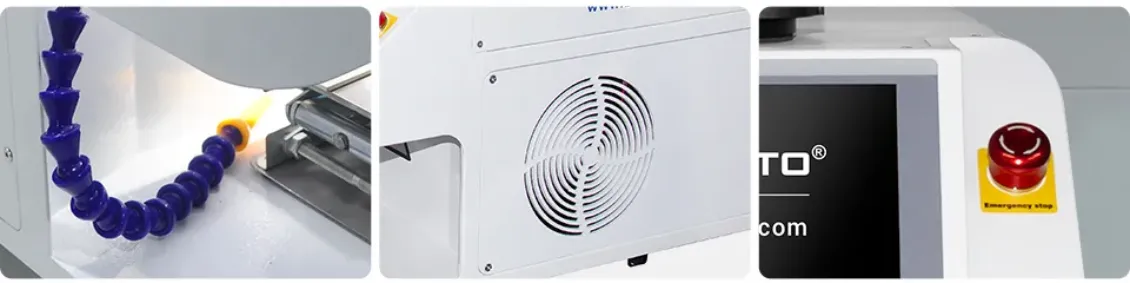

Gas Blowpipe Tube
Continuous and stable output to prevent oxidation and blackening of products during welding;The angle of the blowing pipe can be adjusted at will.
|
Heat Dissipation
Effectively reduces overheating of the machine and allows work to continue.
|
Stop & Start
The emergency stop and start buttons to help you stop in an emergency.
|

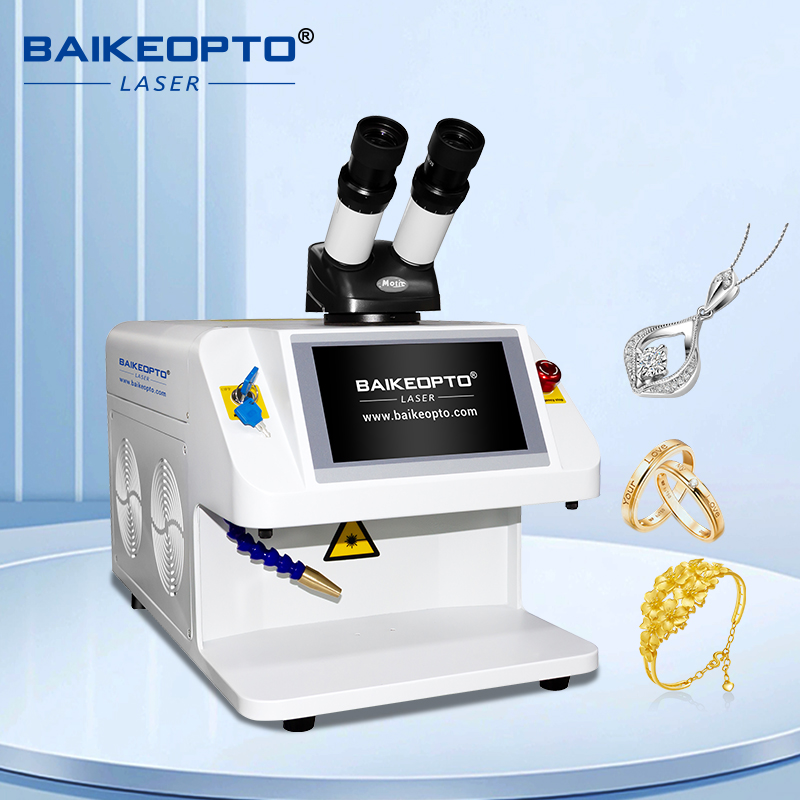

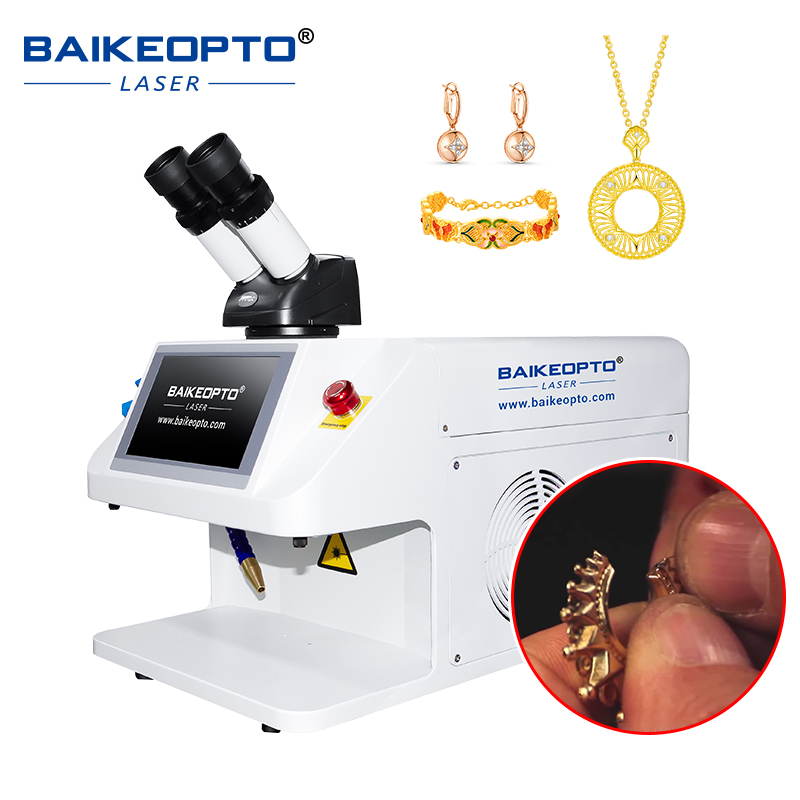

| The jewelry laser welding machine is suitable for precision casting and welding of multi heavy metals and their alloy materials such as gold, silver, platinum, stainless steel, titanium, and small hardware composed of various metal materials. It can be widely used in industries such as jewelry, dentures, clocks, medical, instrumentation, electronics, mechanical mold processing, and automobiles. It is particularly suitable for repairing holes in gold and silver jewelry, spot welding sand holes, repairing seam patterns, and welding claw feet of embedded components. |
| Compared with other welding processes, laser welding can realize the welding of many materials, which has advantages in comparison. The thermal deformation of welding components is small and the joint quality is higher. Laser welding has the advantage of being able to achieve local heating characteristics in a small range which is widely used with precision devices such as jewelry, batteries, automotive.aviation and other applications. This machine is especially suitable for jewelry industry,no special fixture is needed, can be hand-held, micromagnifying glass cross aiming positioning spot welding, filling material, filling sand holes, spot welding freely, that is, spot. |
| Wuhan Baike inteligent Technology Co, Ltd, a wholly-owned subsidiary of Wuhan Baike Times Laser Technology Co,Ltd, was founded in 2008 as a professional supplier of laser machine.Wuhan aike Inteligent Technology Co,Ltd, located in Optical vaey of china, has gathered the best R&D,production and marketing teamsin the domesti.laser industry. More than 100 kinds ofindustrial laser products,including pneumatic marking machine, laser marking machine,laser welding machine,lasercuting machine, developed by the company's technical team,have been widely used in 3C electronics, semiconductor, new energy including photovoltaic)metalorocessina. automoble manwtactunng, electc power, textle machne, aslon twc, medical devces, nstuments ang meters, iood processing aneother industries, The product auality and service have been highly praised by customers internationaly. We has achieved strategic cooperation with dozens of domestic top 500 manufacturing enterprises,We've been dedicated to provide our customers with thehighest quaity,the best cost performance,the most suitable laser equipment.f you have any needs, please cal/mallus directly, All you need to do is just telus what you need, we'll provide the most professional services. |
|
1.What types of jewelry can be made or repaired using a laser welder?
Answer:Laser welders are suitable for a variety of jewelry materials, including gold, silver, platinum, and some alloys. They can be used to create intricate designs, join broken pieces, and add decorative elements to rings, necklaces, earrings, bracelets, and more.
|
|
2.What safety precautions should be taken when using a laser welder for jewelry?
Answer: Safety is paramount when using a laser welder. Always wear appropriate eye protection, such as laser-safe goggles, and ensure the work area is well-ventilated to avoid inhalation of fumes. Additionally, follow all operating instructions and keep flammable materials away from the machine.
|
|
3.Can a beginner use a jewelry laser welder, or does it require specialized training?
Answer: While laser welding can be learned by beginners, it does require some technical knowledge and practice to master. It's advisable to take a training course or watch tutorial videos to understand the fundamentals of operation, safety procedures, and best practices.
|
|
4.How much maintenance does a jewelry laser welder require?
Answer: Like any high-precision equipment, a laser welder requires regular maintenance to ensure optimal performance. This includes cleaning the lens, checking the laser tube and other components for wear, and performing software updates as needed.
|
| 5.How about Warranty? Answer: We offer a one-year warranty(not include consumables) except for human damage. |
| 6. Will the package be damaged during transportation? Answer:Our package is considerate all the damage factors and make it to be safe, and our shipping agent have fullexperienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry,you will receive the parcel in good condition. |
| 7. How to instill and run the machine? Answer: Our technician has installed the machine before shipping. For some small parts installation, we will senddetail training video, user's manual along with the machine. 95% customers can learn by themselves. |
| 8.How can l do if the machine goes wrong? Answer: If confronted with such problems, online service is offered, you could contact our sales. Besides ,we offerengineer delivery service. Please contact us asap and don't try to fix the machine by yourself or someoneelse. We will respond within 12 hours as quick as wo can to solve it for you. |
