Celebrate Milestones with Wall Printing Commemorations! Mark special occasions, achievements, and milestones with our personalized wall printing commemorations. Whether it's a graduation, a company anniversary, or a community event, our wall printing technology can create custom designs that capture the essence of the celebration. Preserve memories, honor achievements, and create lasting mementos with our commemorative wall printing services. |
![]() |
![]() |

1.2pc i3200 Print Head, CMYKW UV ink
2.Waterproof,anti-corrosion,anti-scratch and anti-wear.
3.No fading outdoors for five years, no fading indoors for ten years.
4.Computer automatic color grading.
5.Environmentally friendly and durable.
6.Suitable forindoor and outdoor all kinds of walls.
| Equipment model | BK-UP3200W | |
| Printing software | Genuine professional | |
| Use ink | MYCK water-based ink | |
| Nozzle specification (Epson) | Epson I3200 high precision nozzle 2pcs | |
| level | Imported precision level | |
| electric machinery | 3 imported intelligent motors + reducers | |
| Wall detection | 2 ultrasonic distance detectors | |
| Power off memory | Power off memory function | |
| Laser positioning | Precise infrared laser positioning system | |
| Ground rails | High strength precision rail, 4 sections, 5.2m, | |
| Shaft guide | Imported linear drive module | |
| Print operation platform | Computer | |
| Control mode | Wired / wireless printing | |
| Transportation carrying | (folding) | |
| Power consumption | No load 20W, maximum 250W | |
| Surface tracking | Hyperboloid banner sensor,up-down bidirectional induction | |
| Ink supply system | Positive pressure system ink supply | |
| Print size | 2.5 meters high × Any width,more than 2.5m, can be seamlessly spliced | |
| Construction noise | Standby < 20dBA, drawing < 70dba | |
| Support picture | Photos taken by mobile phone / camera and online pictures | |
| Power requirements | Household power 220VAC or 380VAC | |
| Applicable media | White wall, putty wall, ceramic tile, glass, acrylic, metal plate, brick wall, etc | |
| National film format | Including psd.cdr, JPG, JPEG, PNG, BMP, tiff, EPS, AI, PDF and other formats | |
| Color painting technology | Micro piezoelectric jet technology, variable ink drop, high fault tolerance feathering technology, automatic memory recovery technology after construction interruption | |
| Print Resolution | 360x720dpi/720x1080dpi/720x1440dpi/1080x1440dpi/1440x2880dpi | |
| Operating environment | -20°C-50°C(-4F-122F),10%-70% Relative humidity, non condensing state | |
| Storage environment | -21C-5o°C(-22F-140°F),10%-70% Relative humidity, non condensing state | |
| Nozzle advantages | You can work all day or choose any nozzle | |
| Certification qualification | Green environmental protection certification, national standard inspection qualification (GB18582-2001, GBT9756-2001), CE certification | |
| machine language | Chinese / English | |

|
![]() |
![]() |
![]() |
|
|

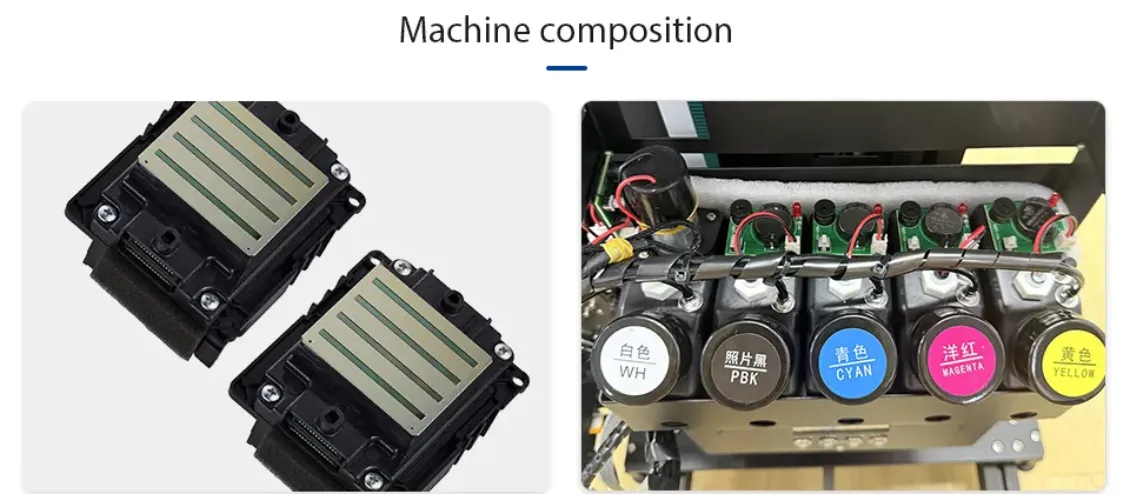

DOUBLE i3200 PRINT HEAD 1.HIGH-RESOLUTION PRINTING 2.FAST PRINTING SPEED. 3. HIGH STABILITY. 4.PRECISE CONTROL. 5. LONG SERVICE LIFE 6. WIDELY USED |
5 COLORSC+M+Y+K+W UV INK 1.EXPAND THE COLOR GAMUT. 2.HIGH QUALITY PRINTING, -CLEAR DETAILS -BRIGHT COLORS 3.FAST CURING SPEED 4.OUTDOORS 10 YEARS UNFADING. 5.INDOOR 15 YEARS UNFADING. |
|
|
|
|

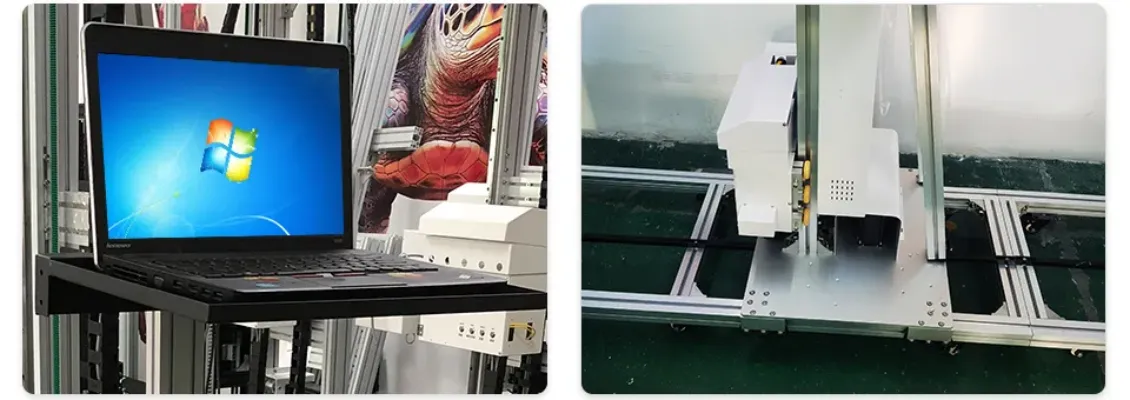

Simple operation 1.User-friendly control and adjustment op-tions make operation easier 2.High intelligence, one click to start print automatically |

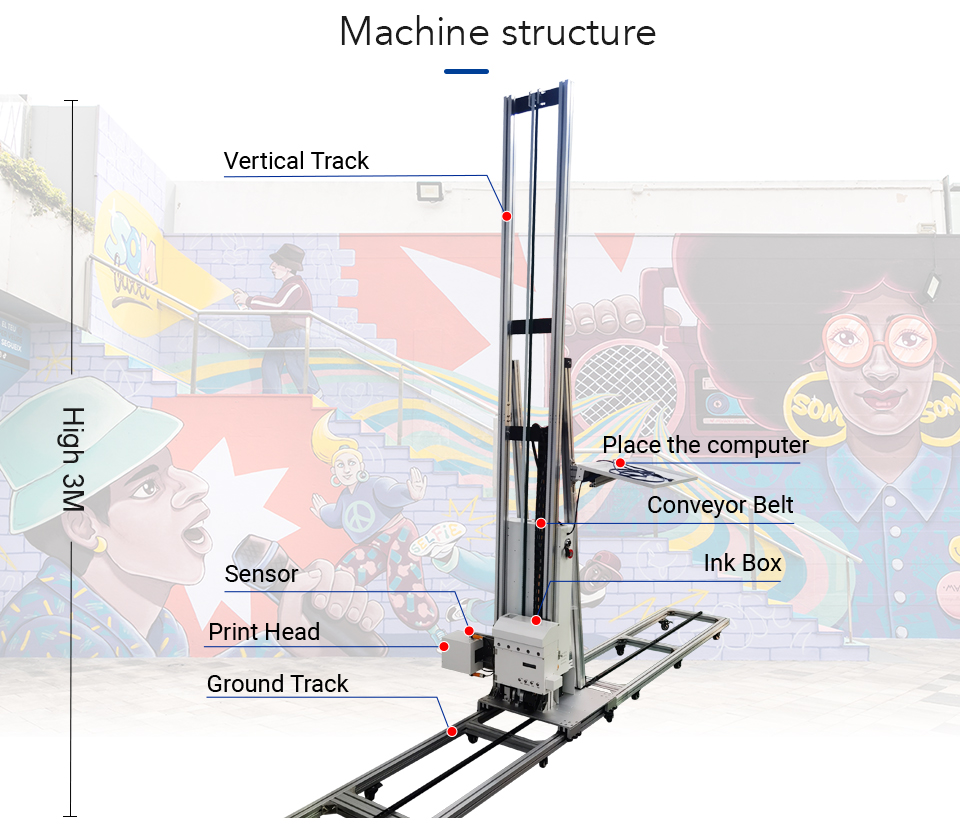

Machine Base 1.Powerful servo motor, ensures stable opera-tion for a long time 2.Aluminum alloy rails and brackets supportfirm and steady working 3.Low noise and silent work for peaceful work-ing environment |

| Printing technology The printing area is vast and is not limited by the printing size. The printing height is com.posed of different-sized rods, and these rods can be freely assembled to meet differentworkspace requirements. lf you have special requirements, you can also contact us to customize rods of different specifications. There is no limit to the printing length, and it can beextended infinitely. |
![]() |
|

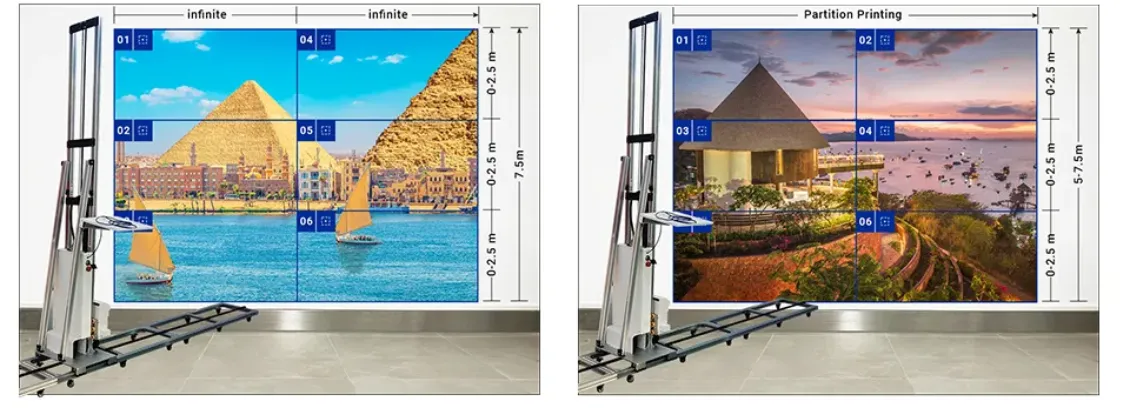

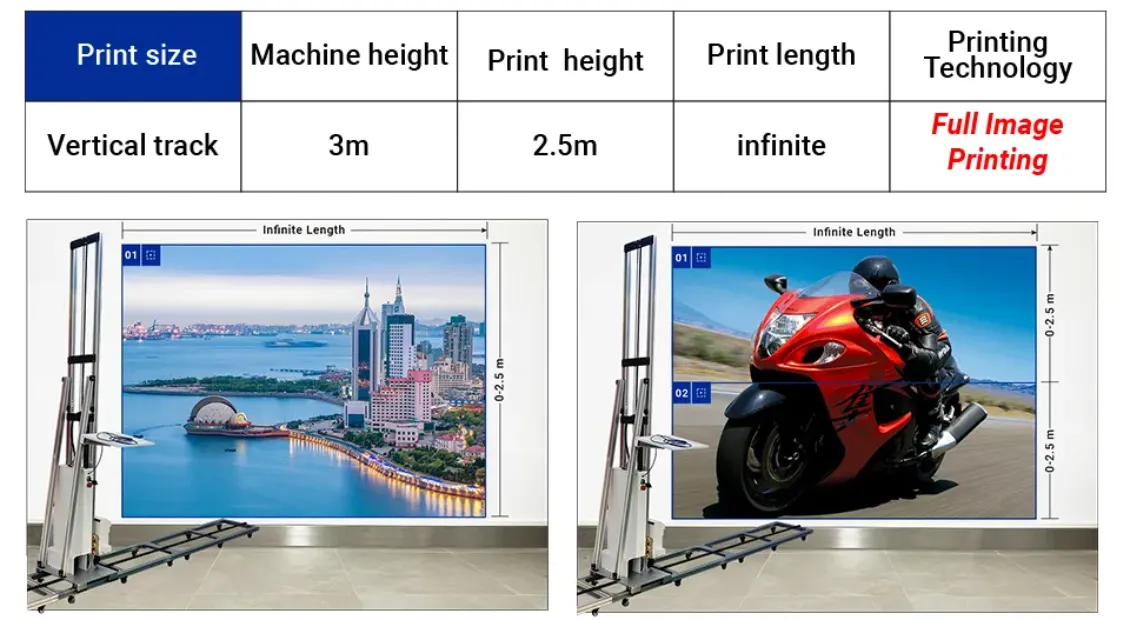

| A. When the height of the image is within 2.5 meters,No Partitioning required, one print done. | B. When you need to print images over 2.5 meters,the machine can to be raised by the scaffold for partition printing. |
![]() |
|
| C. When you need to print oversize picture, the picture need to be divided into multiple areas(1,2,3,...8, etc.) for partition printing. | D. Firstly you divide oversized images into multiple areas for printing, and achieve seamless splicing by identifying the starting point, presenting a complete image. |
| Set the seamless stitching reference area BAlKEOPTO printer is positioned using a laser positioning system, When printing, firstde-termine the first print area, that is, refer to the print area. When partitioned printing, thema-chine first prints the area in the upper left corner (set to "Area 1"). After printing, thema-chine automatically completes the positioning mark. You can then select any areaaround"Area 1" to print, The printer automatically recognizes the starting point for seam.less splic.ing. |
| More Chioces: |
We provide more choices for you! |
![]() |





| Wuhan Baike intelligent Technology Co., Ltd Founded in 2008. We are a professional laser manufacturing company under Wuhan Baike Times Laser Technology Co., Ltd. Our company has developed more 1000+ kinds of laser products, has been widely used in all walks of life, product quality and service has been praised by customers.Our product footprints are spread across all walks of life around the world, and our product quality and services have been 100% praised. Baike is committed to providing innovative industrial laser solutions to customers around the world! Welcome to visit our factory at any time in Wuhan City, China! |






|
Q1: Are you a factory or a trading company? Q2: How long is the warranty period after purchasing the machine? Q3: How soon can the delivery be made after payment? Q4: How long can the printed patterns remain on the wall? Q5: How much ink is consumed for printing patterns? Q6: What should I do if I no longer want the printed pattern on the wall? Q7: What language settings are available on the machine? Q8: How do you handle uneven ground during printing? Q9. How is the quality of the machine? Are there any components that are prone to damage? Q10. Can one print head be used for printing four colors, while another print head is dedicated to printing white? |
