BK-WF3000B 3000W Speedy Multi Welding Angle Fiber Laser Cantilever Welding Machine for Stainless Steel, Aluminum Alloy, Titanium Alloy

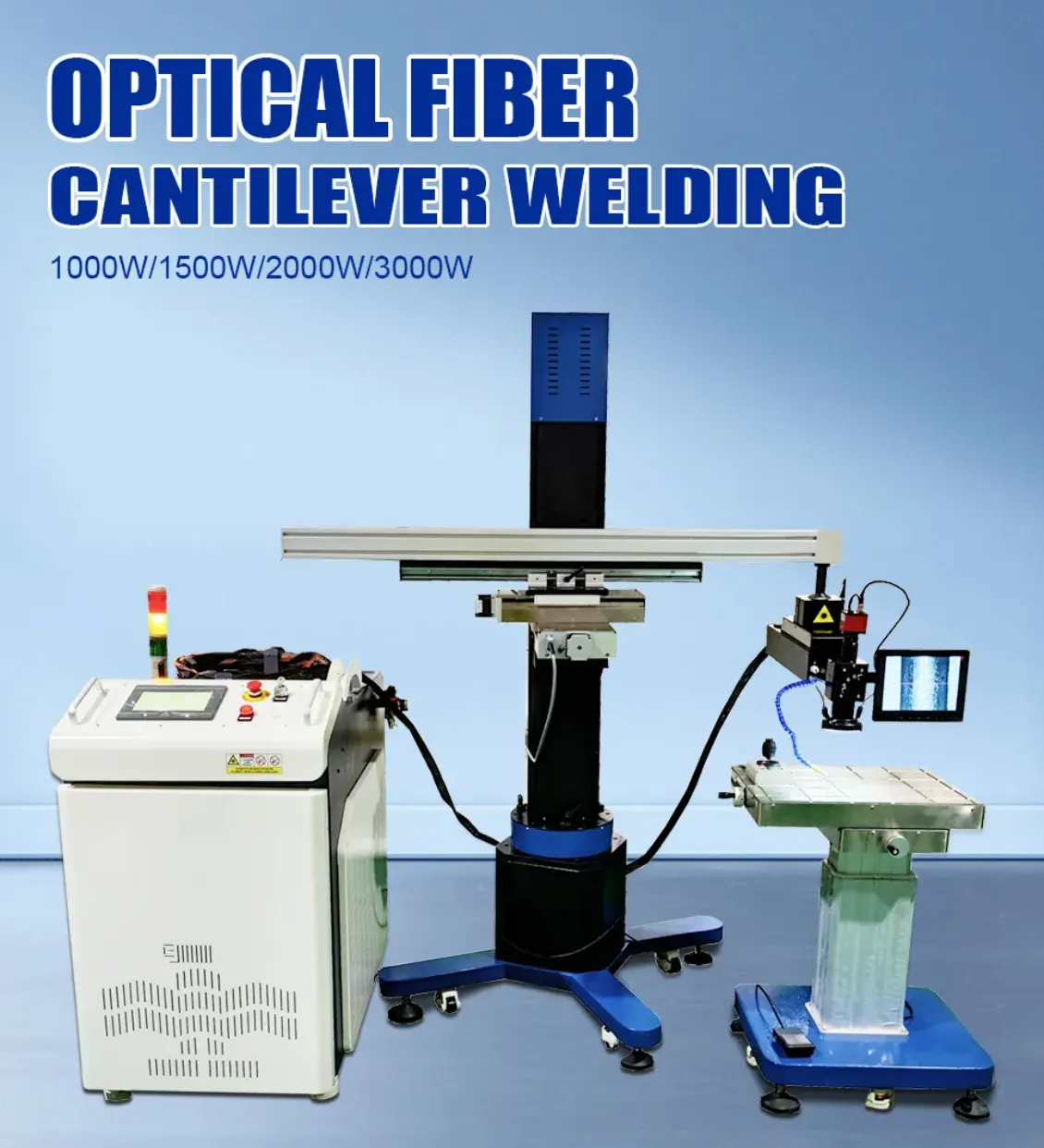

OPTICAL FIBER CANTILEVER WELDING
Fiber cantilever welding employs fiber laser welding technology. The laser radiation heats the surface of the workpiece, and the surface heat diffuses into the interior through heat conduction. By precisely controlling parameters such as the width, energy, peak power, and repetition frequency of the laser pulse, the workpiece is melted to form a specific molten pool, thereby achieving the welding.

1.The cantilever structure enables the welding head to move within a large spatial range, allowing for the welding of workpieces in different positions and shapes. For some hard-to-reach areas, non-contact welding can also be achieved through the flexible transmission of optical fibers, without being restricted by space.

2. The laser beam output by the fiber laser welding machine is of good quality, witha small focused spot and concentrated energy. lt can achieve high-precision welding has a fast welding speed, a small heat-affected zone, and can effectively reduce the deformation and thermal damage of the workpiece. lt is especially suitable for the welding of thin-walled materials and precision parts.

3. The whole structure adopts a cantilever type, which has good rigidity and smooth operation. The optical path design of optical fiber transmission ensures a stable beam and maintenance-free optical path, guaranteeing the stability and consistency of the welding process and facilitating the improvement of welding quality and product yield.

Laser Head
Water-cooled welded head, reliable quartz lens, manual zoom design, with LED ring light, focal length 150mm, and the spot size can be manually adjusted

CCD observing system
10X CCD monitor gives the operator a cear image and helps precise & quick positioning of laser spot on tiny targets,

Operation interface

7* color LED touch operation interface,easy operation and fast responce New user friendly

Joystick

Work parameters can be easily adjusted via the joystick and up-and-down buttons

Optical System

Well-orgnized and compact design, Fully-sealed to prevent from dust, Anti-corosion material, Ball shraft allows adjustment in all directlons freely

Motion System

XYZ driven by stepper motor Fast and smooth movement, Movement speed adjustable

Main Circuit

Well-orgnized wire setting, Top quality electronics, Safety interock offered, Ethernet/R5232 check port available

Cooling system

It is equipped with a dedicated chiller for fiber lasers, featuring dual temperature and dual circulation, low noise, over-temperature alarm, flow protection and water level protection

Wuhan Baike Intelligent Technology Co.,Ltd., a wholly-owned subsidiary of Wuhan Baike Times Laser Technology Co., Ltd., was founded in 2008 as a professional supplier of laser machine. Wuhan Baike Intelligent Technology Co.,Ltd., located in Optical Valley of China, has gathered the best R&D, production and marketing teams in the domestic laser industry. More than 1000 kinds of industrial laser products, including pneumatic marking machine, lasermarking machine,laser welding machine, laser metal processing, automobile manufacturing, electric power, textile machinery, fashion FMcG, medical devices, instruments and meters, food processing and otherindustries.The product quality and service have been highly praised by customers internationally.
We have achieved strategic cooperation with dozens of domestic top 50 manufacturing enterprises. We've been dedicated to provide our customers with the highest quality, the best cost performance, the most suitable laser equipment. If you have any needs, please call/mail us directly. All you need to do is just tell us what you need, we'll provide the most professional services.

1). When can l get a quote?

We quote within 24 hours of receiving your inquiry for Alibaba, ifyou urgently need to get a machine price. please call us or let us know in your email so that we can prioritise your inquiry.

2). How can l get samples to guarantee your quality?

If you would like to weld the sample to check the quality, please send the sample to us for testing

3). How long can l expect to get samples?

Once we receive your sample, we will ensure that the welding sample is completed within 2 days

4).QC team

Our group is made up of professionals to ensure the high quality of 100% of our products.

5). Contact us

We appreciate any inguiries you make via email, fax or instant message. We will respond to your email or fax within 18 hours. If you have any questions, please feel free to call us.

6) Will the package be damaged during transportation?

Our channel letter laser welding machines are packaged with all damage factors in mind to make them safe and our freight forwarders have extensive experience in safe transportation, We have exported to 180 countries around the world. So please don't worry, you will receive the package in perfect condition.

7) How to feed and run the machine?

Our technicians have installed the machine before delivery. For the installation of some small parts, we will send detailed training videos, user manuals together with the machine. 95% of customers can learn on their own.

8) What to do if something goes wrong with the machine?

lf you encounter such problems, an online service is available and you can contact our sales staff. In addition we offer engineer delivery services. Please contact us as soon as possible and do not attempt to repair the machine yourself or others. We will solve your problem as soon as possible within 12 hours.
