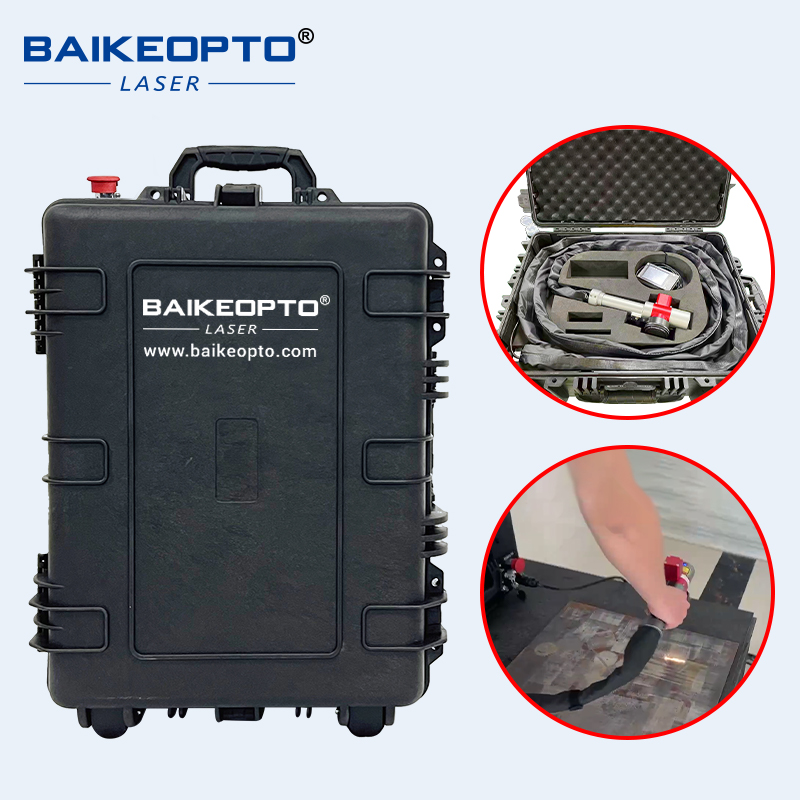

200W Portable Trolley Case Industrial Pulsed Laser Cleaning Machine for Metal Rust Oil Painting Eco-friendly Laser Rust Removal Solution
FIBER LASER CLEANING MACHINELaser cleaning is a new technology based on the interaction between laser and substance, which can achieve the effect of removing surface pollution and attachments. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning, "green" environmental protection and online, especially suitable for high-speed online cleaning in designated areas. BAIKEOPTO pulse laser cleaning is a process used to remove rust, paint, oxide, and other contaminants from metal surfaces without harming the environment. Lasers can strip oil and grease, paint or coatings, and modify surface texture-like adding roughness for increased adhesion. |
|
 |
| What are the characteristics of the portable laser cleaner? |
Easy-to-Use MachinesBaikeopto's fiber laser cleaning machines are designed with the user in mind. They are user-friendly and require minimal maintenance, making them ideal for industrial applications. |
Cost ReductionThe fiber laser cleaner is much faster than other traditional cleaning methods, cutting labor costs. Also, this rust removal tool can be used as soon as it's powered on. |
Elimination of Chemical SolventsThe laser cleaning metal process doesn't use chemicals, so it's more environmentally friendly and doesn't produce chemical pollution. |
Non-Damaging ProcessAdopting a fiber laser cleaning method is non-abrasive and doesn't require mechanical force; plus, it won't damage the surface of the objects you're cleaning. |
Easy-to-moveTrolley design, with its own moving wheel, easy to move; High cleaning efficiency, save time |
Accurate cleaningThe pulse laser cleaner can achieve precise position, realize accurate size selective cleaning. |
| What material can the laser cleaning machine remove? |
|

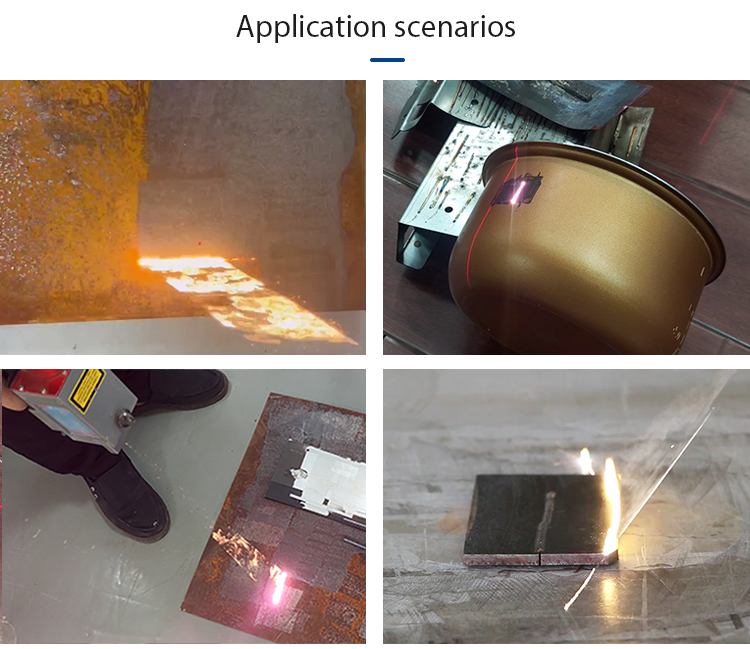

Remove surface resin, paint, oil stains, dirt, rust, coatings, and oxidation layers from objects; this process is widely used in industries such as ship building, auto repair, rubber molding, high-end machine tools, rail tracks, and environmental protection. In cultural heritage conservation, laser cleaning systems delicately remove dirt, patina, or aged coatings from historical artifacts, sculptures, and architectural elements. The adjustable power and spot size allow restorers to target contaminants layer by layer, preserving fragile surfaces like stone, wood, or murals. This method replaces abrasive techniques, preventing unintentional damage while revealing original textures and inscriptions. |
|
|
|

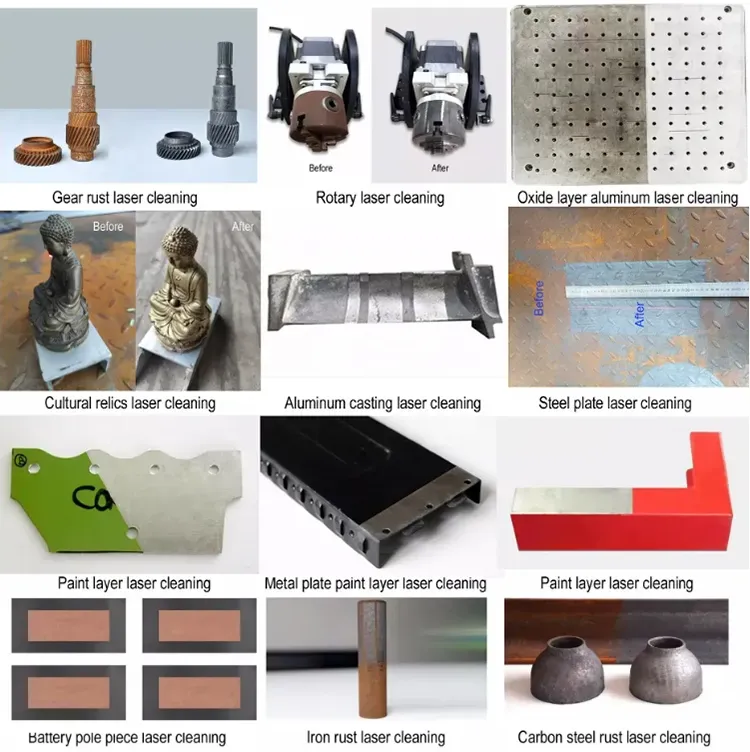

Multiple cleaning scenariosGear rust laser cleaning, Rotary laser cleaning, Oxide layer aluminum laser cleaning, Cultural relics laser cleaning, Aluminum casting laser cleaning, Steel plate laser cleaning, Paint layer laser cleaning, Metal plate paint layer laser cleaning, Paint layer laser cleaning, Battery pole piece laser cleaning, Iron rust laser cleaning, Carbon steel rust laser cleaning. |
.jpeg?w=750&h=649)
| Parameters of the Trolly Laser Cleaning Machine |
| Operating environment | |
| Content | BK-FLC100SL Laser Metal Cleaner |
| Supply voltage | Single phase220V±10%、50/60Hz AC |
| Power consumption | ≤800W |
| Working environment temperature | 5℃～40℃ |
| Working environment humidity | ≤80% |
| Optical parameters | |
| Average laser power | ≥100W |
| Power instability | ＜5% |
| Laser Working Mode | Pulse |
| Pulse width | 10-500ns |
| Maximum monopulse energy | 1.5mJ |
| Power regulation range（%） | 0-100( Gradient Adjustable) |
| Repeat frequency（kHz） | 1-3000（Gradient Adjustable） |
| Fiber length | 5m |
| Cooling mode | Air cooling |
| Cleaning head parameters | |
| Scan range (length * width) | Uniaxial :0mm-100mm, continuously adjustable; |
| Biaxial: supporting 8 scanning modes | |
| Scanning frequency | The maximum is not less than 300Hz |
| Field mirror focal length（mm） | 160mm（ Optional 210mm/254mm/330mm/420mm） |
| Depth of focus | About 5 mm |
| Mechanical parameters | |
| Machine size（Length, width and height） | About 500mm×680mm×200mm |
| Machine Weight | About 45KG |
| Cleaning head weight (including isolator) | ＜0.75Kg |
| Mode of operation | Handheld/automated |
| How to choose a right laser cleaner? |
|
Firstly, as a buyer for a laser cleaner, you're highly recommended to provide detailed cleaning requirements to us, like "what's your cleaning objects (materials & contaminants)" "Do you need high-precision cleaning or large-area rough cleaning?" "How about the cleaning speed?" It will be much helpful if you can send us pictures or videos of the cleaning object. Secondly, our engineer will recommend a most suitable laser cleaner and support a perfect cleaning solution for you. If need, we support free sample test online for to check the cleaning effect. Last, you can place order on our store and soon you'll get a qualified laser cleaning machine. |
| What's the configurations of this laser cleaning machine? |
| Built with impact-resistant alloys and dust-sealed enclosures, the exterior structure of laser cleaning machines with stands harsh environments. High IP-rated casings protect internal circuits from moisture, debris, or chemical splashes, making them suitable for outdoor or factory use. Enhanced shock absorbers further safeguard delicate optical components during transport or heavy-duty applications. |  |
 |

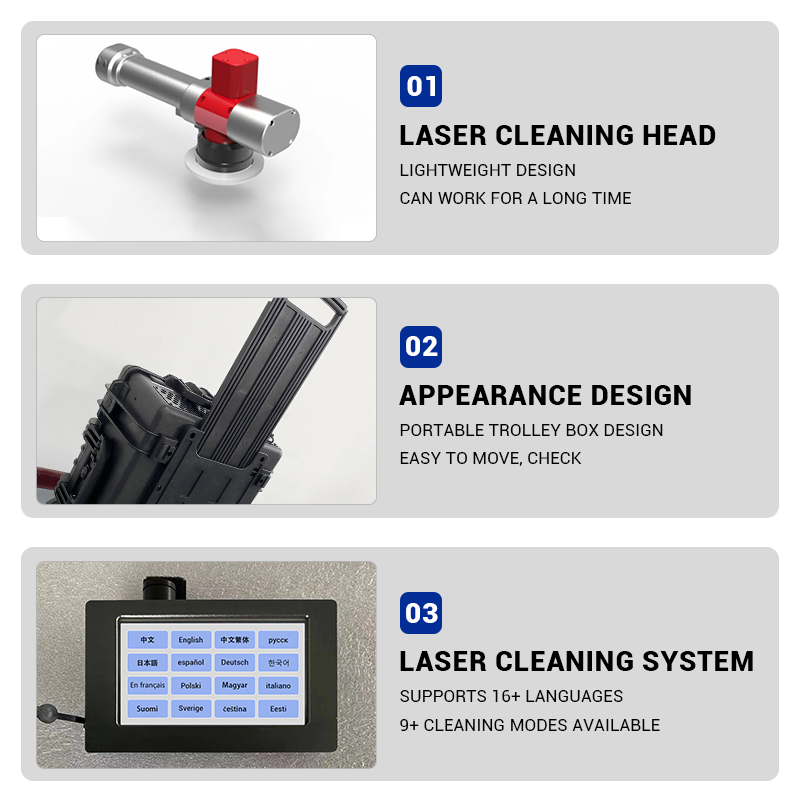

1. Laser Clean Head
|
|
4. Filed Lens
|
 |
| Does there any cleaning machine for choice? |
 |

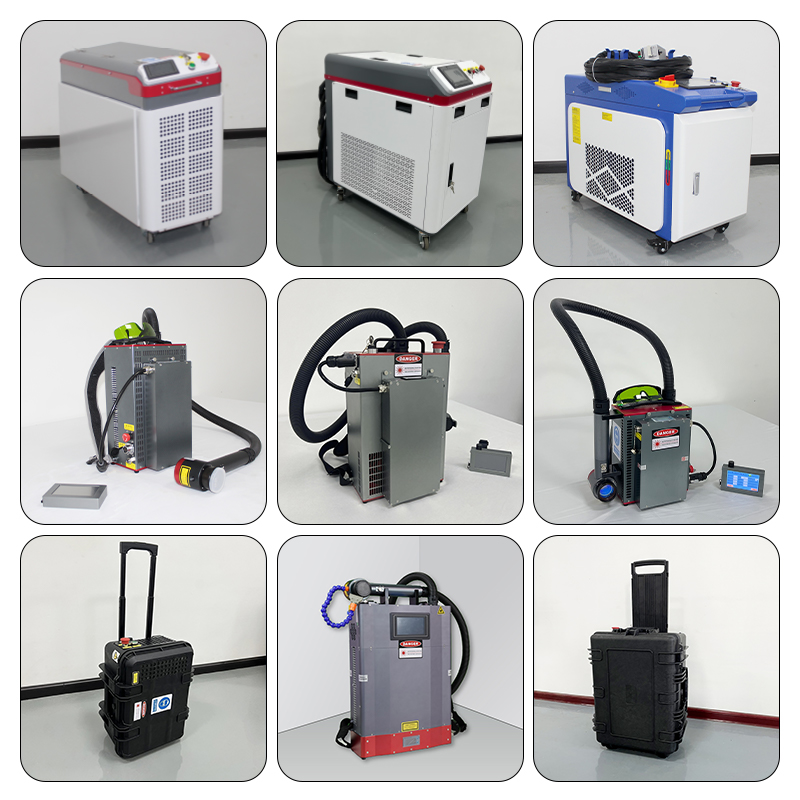

We also have continuous laser cleaning machines, chassis pulse laser cleaning machines, and trolley case laser cleaning machines. There is always one machine that meets your needs. |
| About us |
|
Wuhan Baike Intelligent Technology Co., Ltd., a wholly-owned subsidiary of Wuhan Baike Times Laser Technology Co., Ltd., was founded in 2008 as a professional supplier of laser machine.Wuhan Baike lntelligent Technology Co., Ltd., located in Optical Valley of china, has gathered the best R&Dproduction and marketing teams in the domestic laser industry. More than 100 kinds of industrial laserproducts,including pneumatic marking machine, laser marking machine, laser welding machine, laser cuttingmachine, developed by the company's technical team, have been widely used in 3C electronics, semiconduc-tor, new energy (including photovoltaic), metal processing, automobile manufacturing, electric power, textilemachinery, fashion FMCG, medical devices, instruments and meters, food processing and other industries. Theproduct quality and service have been highly praised by customers internationally. We has achieved strategic cooperation with dozens of domestic top 500 manufacturing enterprises. We'vebeen dedicated to provide our customers with the highest quality, the best cost performance, the mostsuitable laser equipment. lfyou have any needs, please call/mail us directly. All you need to do is just tell uswhat you need, we'l provide the most professional services. |
| FAQs |
|
1. What are the advantages of using a Pulsed Laser Cleaning Machine over traditional cleaning methods?
Answer: Advantages include improved cleaning efficiency, precision targeting of contaminants without harming the underlying material, no requirement for chemical cleaning agents, and reduced long-term maintenance costs. |
|
2. Can Pulsed Laser Cleaning Machines be used on any type of material?
Answer: While pulsed laser cleaning works on a wide range of materials, it should be used with caution on certain substrates that may be sensitive to heat or light. It's important to check the compatibility with your specific material first. |
|
3. What are the precautions during the use of the rust cleaning machine?
Answer: Electrical power supply of the cleaning equipment is 220 V 50Hz AC power supply; About 2m of ventilation must be left before and after the equipment. In the course of operation, labor protective equipment should be worn according to regulations, and protective glasses must be worn near the laser beam;Do not place flammable and explosive items near the cleaning machine! Such items should avoid direct or reflective laser. |
|
4. How long does the Pulsed Laser Cleaning Machines last?
Answer: With proper care and routine maintenance, pulsed laser cleaning machines can last for many years. The lifespan also depends on the frequency and intensity of their use.
|
| 5. How about Warranty? Answer: We offer a one-year warranty(not include consumables) except for human damage. |
Thank You For Your Attention And Choice.

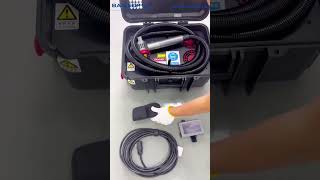

Machine Working Video
