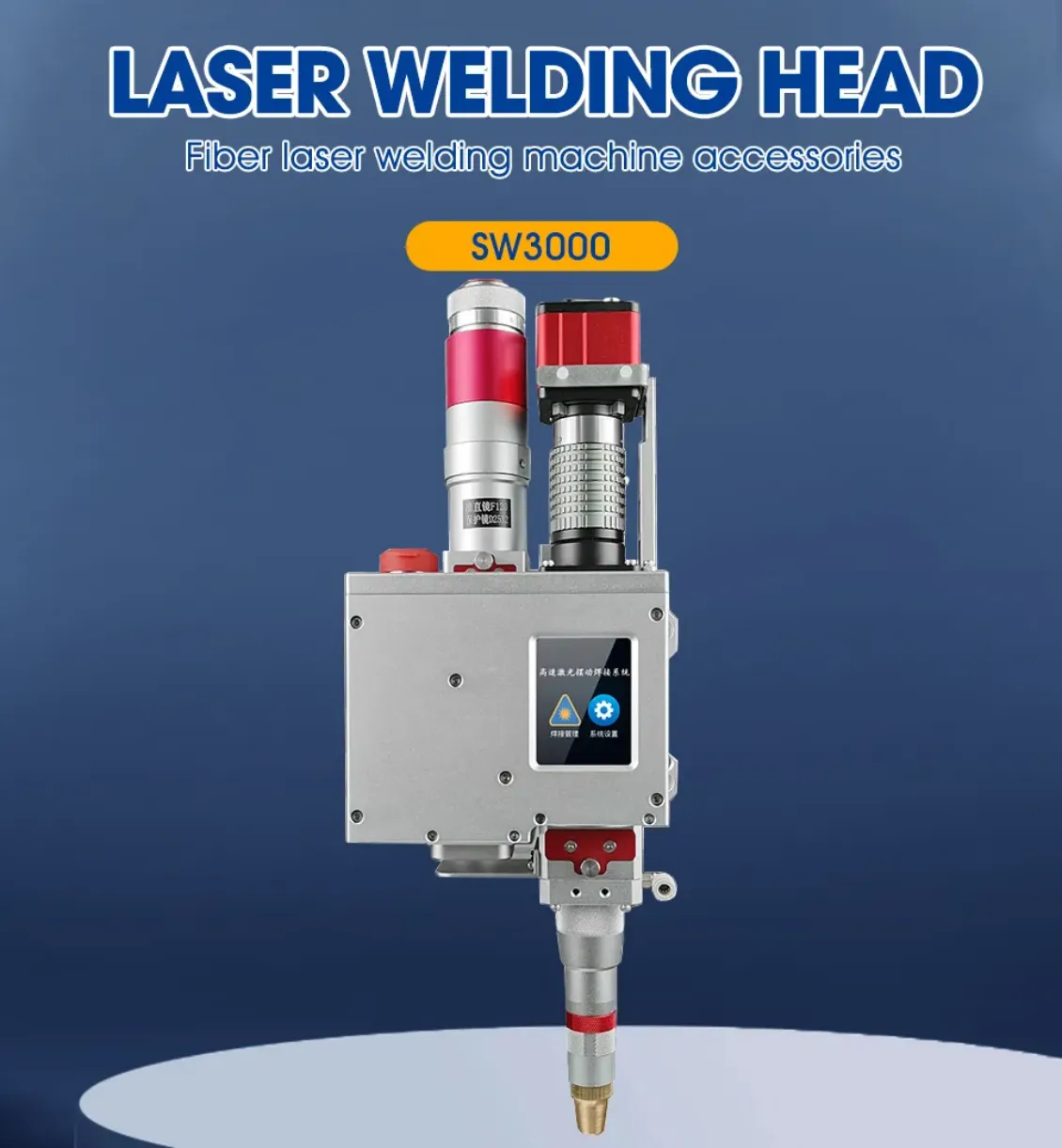

ZBTK SW3000 Laser Welding Head【FOB】
The SW3000 welding head is a lightweight 2000W medium-power laser oscillation welding head. The control box and the welding head are designed as a separate unit, which optimizes the shape and weight of the oscillation head to the greatest extent. This significantly reduces the load on the platform or robotic arm and lowers the overall cost of the welding equipment.
$935.00 USD
$1,050.00 USD
Global Sales Of More Than 500 Products
1-3 Years Long Warranty
Products Has Passed Quality Certification
100% Inspected Before Delivery
Quantity
Description
|

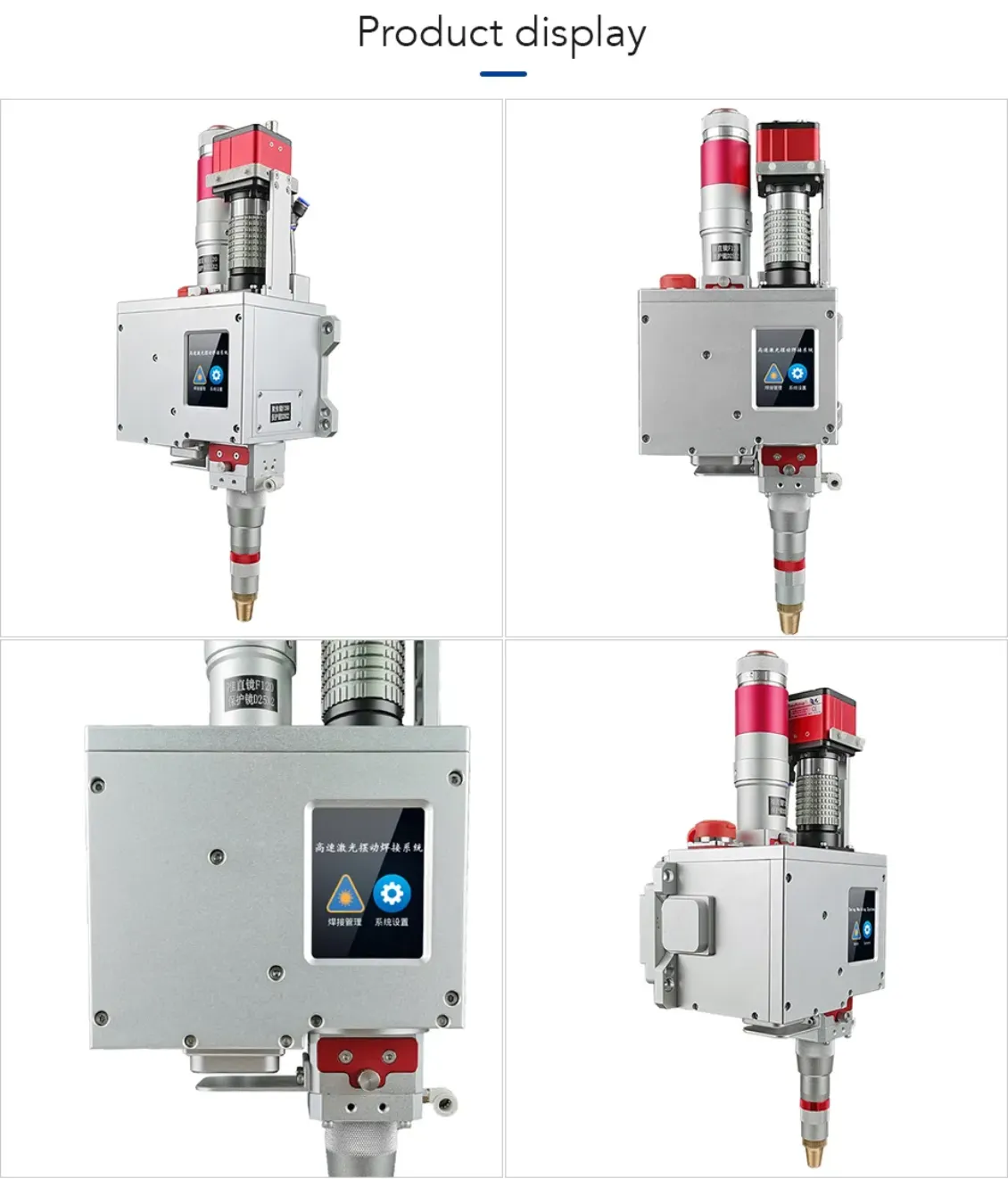

SWING LASER WELDING HEAD
The SW3000 welding head is a lightweight 2000W medium-power laser oscillation welding head. The control box and the welding head are designed as a separate unit, which optimizes the shape and weight of the oscillation head to the greatest extent. This significantly reduces the load on the platform or robotic arm and lowers the overall cost of the welding equipment. It can be widely applied in laser welding, laserquenching, laser cladding and other processing fields in platform automation orrobotic automation scenarios.
|
|
1. Lightweight: With the integrated drive and control design, the weight is only ap.proximately 3kg, which can significantly reduce the load on the platfor or roboticarmn and lower the overall cost.
2. High reliability: With the integrated drive and control design, the internal com.ponents include motor drivers and control cards. It can work simply by supplyingpower, and there is no problem of signal interference during long-distance transmission in complex working conditions, lt has extremely srong anti-interferenceability and long-term stability.
3. Easy operation: By using the integrated knobs on the swing head, you can quick-ly switch the swing mode, madify the swing frequency and swing width, lt is simpleand easy to use, and the process of maintenance and debugging is convenient andfast. 4. Easy maintenance: All the protective mirrors, focusing mirors, and collimatingmirrors adopt a drawer-type modular design, making it convenient for users tomaintain and repair.
5. Coaxial light source design: lt has a unique coaxial light source design, When theswing head rotates freely, the clarity of the D image is not effected. |
|
Techincal Parameters
|
|||
|
Name
|
SW2000
|
SW3000
|
SW6000
|
|
Laserinterface
|
Standard QBH interface
|
Standard OBHinterface
|
Standard OBHinterface
|
|
Laser wavelength
|
1030nm~1090nm
|
1030nm~1090nm
|
1030nm~1090nm
|
|
Laser power
|
≤2000W
|
≤3000W
|
≤6000W
|
|
Collimator lens
|
F100/F120/F150/F200
|
F100/F120/F150
|
F100/F120/F150
|
|
Focusing lens
|
F200/F250/F300
|
F200/F250/F300
|
F200/F250/F300
|
|
Observe ccD
|
support
|
support
|
support
|
|
Side blowing air
|
monolayer
|
single laver
|
single laver
|
|
Protective gas path
|
Support
|
support
|
support
|
|
Protective lens
|
Drawer type
|
Drawer type
|
Drawer type
|
|
Focusing lens
|
Drawer type
|
Drawer type
|
Drawer type
|
|
Collimator lens
|
Replaceable
|
replaceable
|
replaceable
|
|
Laser controlmode
|
Internal control/external contro
|
||
|
Trigger mode
|
Internal control/external contro
|
||
|
Warm zone
|
Zone 2
|
Zone 2
|
Zone 2
|
|
Industrial bus
|
RS485/RS232
|
RS485/RS232
|
RS485/RS232
|
|
Welding mode
|
Side blow welding/coaxial welding
|
side blow weldina/coaxial welding
|
side blow weldina/coaxial welding
|
|
Plucking Model
|
Line/Rectangle/Elipse/8 Word/Circular Jitter
|
Line/Rectangle/Elipse/8 word/Circular litter
|
Line/Rectangle/Elipse/8 word/Circular litter
|
|
Variable power mode
|
Supports adjustable power in segments
|
||
|
Swing width
|
8mm
|
8mm
|
8mm
|
|
Swing speed
|
<4000mm/s
|
<4000mm/s
|
<3000mm/s
|
|
Swing frequency
|
<100Hz
|
<200Hz
|
<100Hz
|
|
Repeatability
|
<2um
|
<2um
|
<2um
|
|
8 hour temperature drift
|
<10um
|
<10um
|
<10um
|
|
Power supply
|
VDC±15V/5A
|
VDC+15V/5A
|
VDC+15V/5A
|
|
Operation temperature
|
+15℃~+35℃
|
+15℃~+35℃
|
+15℃~+35℃
|
|
Storage temperature
|
-10℃~+60℃
|
-10℃~+60℃
|
-10℃~+60℃
|
| Application products have been widely used in sheet metal industry，advertising signs, oil pipes, fitness equipment , kitchenware industry , hardware tools, automobile industry , household appliances, precision machinery , environmental protection equipment and other industries. |

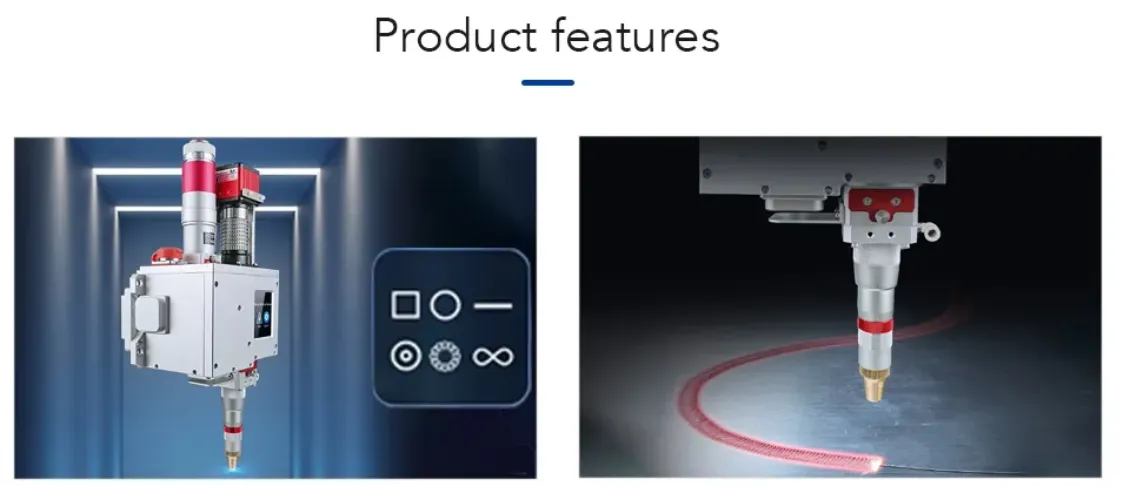

| Powerful and easy to operate The ZBCX-SW3000 integrates functions of success rate, valve and trajectory linkage control, lt supports adjustable welding width ranging from 1 to 10 millimeters. lt is standardly equipped with 6 trajectory modes and standard sets of process parameter storage. |
Track following function When welding complex weld seams, it can precisely control the oscillation trajectory, ensuring that it remains consistent with the direction of the weld seam and always perpendicular to the tangent direction of theweld seam, This guarantees the uniform distribution of laser energy and achieves outstanding welding results! |

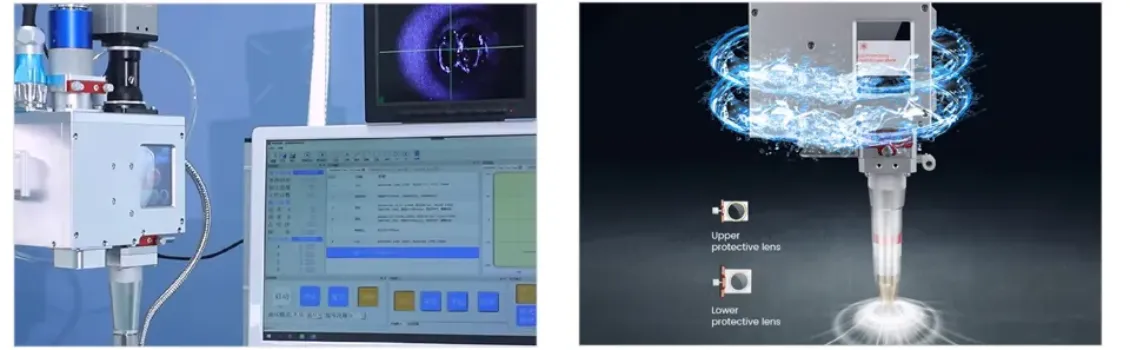

| CCD coaxial observation Equipped with an industrial grade CCD high-definition camera, it can realize simultaneous observation of the entire field of view without blind spots. The imaging effect is clearer. |
High safety and stability It adopts a unique motor and opstical system multi-cycle water-cooling technology, and is equipped with a two-level protectve mirror structure as well as various blowing protection structures. The soft-ware integrates dual-channel temperature monitoring and alarm, switch, and alarm status output functions; multiple protection measures ensure the safe and stable operation of the product. |
|
